Simple Interlocking Joints

matt.culik
Contributor
Contributor

I'm working on drawer organizers for our kitchen. They will be made from 1/4" plywood which I will laser cut. I'd lock to design in simple interlocking joints to ease assembly.

My plan (for a number of reasons) is to draw the organizers in 3D and then export the individual faces of the various pieces of wood as DXF files for the laser cutter.



My question is:



Is there an easy way in Fusion 360 to make interlocking joints like in the example image below without having to model in the slot in half of the pieces (and then use combine/cut)?



Would be great if I could just design them all as intersecting rectangles and then have the slots done automatically.



Thanks for the help!



Screen Shot 2020-09-09 at 9.06.10 AM.png





0 Likes
4,127 Views
10 Replies
  • Help
Replies (10)
Message 2 of 11

g-andresen
Consultant
Consultant

Hi,

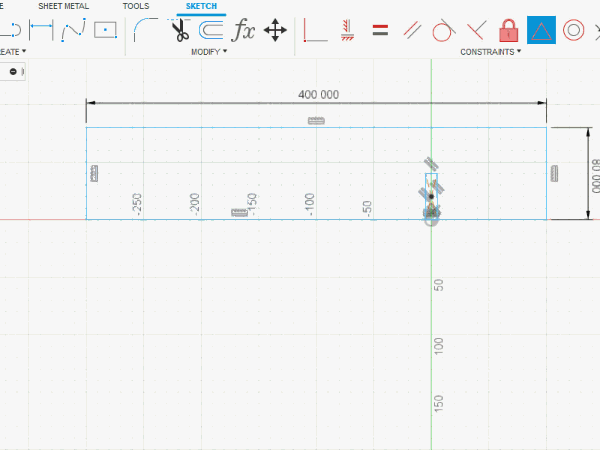

here´s one way:


My recommendation:
create parameters for thickness, height, width ...

günther

0 Likes
Message 3 of 11

2herds
Advocate
Advocate

From what I gather you you would like all interlocking item to be made automatically.

Only 2 ideas came to mind for me. First if there is symmetry between most or all the parts then perhaps they could be stacked together and then the cut made. Or, make the part large enough, then make a cut then slice into the parts needed.

All this assumes I am following your proposal.

0 Likes
Message 4 of 11

davebYYPCU
Consultant
Consultant

Your suggestion is the simple way, don’t forget the tolerances.

Make one, pattern them.

make a crossing rail, Combine cut, one and pattern it.



You have to create the sockets in the first half for that system to become semi automated.



Install DXFer to streamline the dxf files.



Might help....

0 Likes
Message 5 of 11

etfrench
Mentor
Mentor

That's not a very good design for machining as the corners are square and the tool bits are round 😀

ETFrench

EESignature

0 Likes
Message 6 of 11

etfrench
Mentor
Mentor

Missed the laser cutting🤕

ETFrench

EESignature

0 Likes
Message 7 of 11

chrisplyler
Mentor
Mentor



Point still valid. Laser cutters use a round beam, right?



I guess if it's small enough, the interfering corners of wood just compress when you drive the things together?



Or you allow for a tolerance.



0 Likes
Message 8 of 11

davebYYPCU
Consultant
Consultant

Yep round beam, so small that you don’t notice it, on mine it is the radius of the 0.2 mm beam, but very much machine specific.

0 Likes
Message 9 of 11

chrisplyler
Mentor
Mentor



No experience with laser cutters myself. Can you set the center of the beam to follow right on the line? Or do you pick a side to leave untouched and the kerf is vaporized on the other side?



0 Likes
Message 10 of 11

davebYYPCU
Consultant
Consultant

You elect one or the other, for my work I run centre of the line, adjusting geometry for this type of interlocking Part fit,

most routers have to run edge to the line, (cutter compensation, radius offset and dog bones).

0 Likes
Message 11 of 11

chrisplyler
Mentor
Mentor



Cool. So I'm guessing for THIS project...plywood drawer dividers...just design the parts with no tolerance gap, cut them, then the 0.2mm laser gap will be pretty adequate for sliding the dividers together, and the tiny radius in the corners of the notches will probably actually help it fit right. Close enough to make a solid set of dividers without being hard to assemble or binding up with a little moisture.
