Hello everyone, I'm Niesha. I recently enrolled in a cnc manufacturing class that has us using fusion 360 and I'm still learning my way around the software. I'm looking to connect with as many peoples as I can to master the program. I am eager to learn from everyone in hopes to land a job in manufacturing. Since I started my class in June our teacher has given us a bunch of scale drawings and this one, I'm working on now is pretty tough. I have attached pics of the drawings if someone could help me understand how to create the back piece it looks like it bends up but I'm not sure how to get the proper measurements with that piece going up. Do I create a rectangle or draw lines to make that piece? Any help is appreciated. Thank you in Advance.

[TheCADWhisperer]

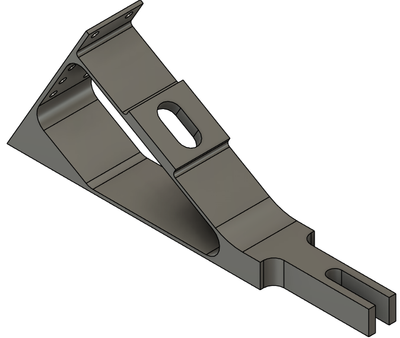

@bryantniesha

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

That way we can see that you have made an honest effort to model the geometry on your own.

[TheCADWhisperer]

@bryantniesha

Hint #1

[bryantniesha]

Hi I managed to create the front side of the piece so far. The backside I
was having so much trouble with.

[bryantniesha]

Hey thank you for that hint let me go back now to incorporate that angle for the back part

[TheCADWhisperer]

@bryantniesha

Hint #2

Click on image above to enlarge the view.

[TheCADWhisperer]

@bryantniesha

Hint #3

Attach your attempt here and I will show you simple method to complete step-by-step.

[bryantniesha]

hey can i show u on discord what I mean

[TheCADWhisperer]

@bryantniesha

Are you using student license?

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

[TheCADWhisperer]

---

@bryantniesha wrote:
hey can i show u on discord what I mean

---

Am I supposed to magically know what link you are referring to?

[bryantniesha]

Sorry I think it shows a bit clearer here you know the two fork pieces in the front. I drew my measurements on the side but they didn't connect with the forks.

[TheCADWhisperer]

@bryantniesha

OK, now we can move forward with this design.

Start over.

In your new file create a sketch on the top plane and sketch a 2-Point Rectangle as shown.

[TheCADWhisperer]

@bryantniesha

Dimension the Rectangle as shown below...

[bryantniesha]

This is that part

[TheCADWhisperer]

@bryantniesha

This next step is critical - always use symmetry about the Origin when practical.

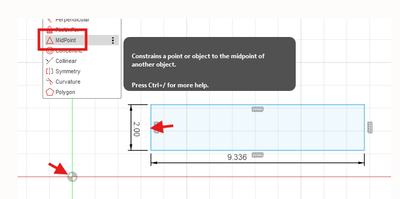

Add a Midpoint Constraint between the Origin and the midpoint of the left vertical line of the Rectangle.

Click on image above to enlarge the view.

[bryantniesha]

Im with you

[TheCADWhisperer]

---

@bryantniesha wrote:

This is that part

---

@bryantniesha

Forget your previous attempt for now.

You were sort of on the right track, but we are starting over.

[TheCADWhisperer]

---

@bryantniesha wrote:

Im with you

---

@bryantniesha

Follow my instruction exactly.

The location of the Origin is critical for easy modeling.

[bryantniesha]

I see what you mean now this is with constraints

[TheCADWhisperer]

@bryantniesha

Now add a second 2-Point Rectangle as shown below...

Then add a Midpoint Constraints between the two points shown below...

Now add this 12.836 dimension...
