Need help on creating construction radius in drawing module.

nikerochine
Participant
Participant

Hello

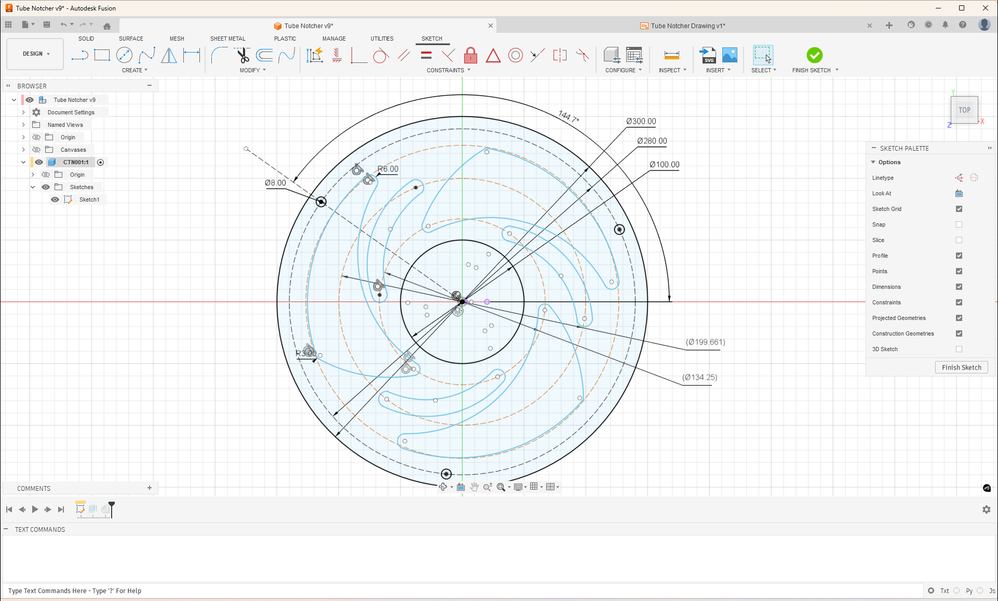

I have attached two pictures to my question. So in my sketch, I have two construction radii that is used to locate a slot (dimensions lower right corner 199.661 and 134.25). I want to create the same construction radii in the drawing module I cannot seem to find a way to do this. Can anyone help, please? Thank you



Drawring Module.pngSketch.png

0 Likes
Accepted solutions (2)
286 Views
11 Replies
Replies (11)
Message 2 of 12

nikerochine
Participant
Participant

I have tried inserting a sketch that is available in the module. The issue is that when I try to dimension it, it gives a scaled dimension instead of a real dimension of the original drawing.

Hope that is enough info for you guys

using sketch function.png



0 Likes
Message 3 of 12

kacper.suchomski
Mentor
Mentor

Hi

Where is your file?


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


0 Likes
Message 4 of 12

laughingcreek
Mentor
Mentor
Accepted solution

sketching using the sketch tools in the drawings module will be useless for this.  instead, in the design space create a sketch with just the circles you want by projecting them from the sketch you show in your picture into a new sketch.  set them to a regular line type.  in the drawing module you can expose this sketch (the same way you you would for a solid).

Message 5 of 12

nikerochine
Participant
Participant

I posted the screenshots. I don't want to share the whole design, plus I don't think you need it to answer my questions.

0 Likes
Message 6 of 12

nikerochine
Participant
Participant

I might be a bit slow to understand, but hang with me.



1. In the design space, create another sketch with a projected radius of the initial drawing.

Do I redraw the regular line over the projected? Sorry, I am not getting the process.

0 Likes
Message 7 of 12

kacper.suchomski
Mentor
Mentor
@kacper.suchomski wrote:

Where is your file?



@nikerochine wrote:

I don't think you need it to answer my questions.



@nikerochine wrote:

Sorry, I am not getting the process.


This is why you should attach files to your queries.

It's easier to provide instructions through a video, especially for new users who are unfamiliar with concepts and terms.

You don't have to share the entire project; you don't even have to share this project.

You can create a new mock project with minimal information that mimics a specific problem.


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


0 Likes
Message 8 of 12

HughesTooling
Consultant
Consultant
Accepted solution

@nikerochine wrote:

I might be a bit slow to understand, but hang with me.



1. In the design space, create another sketch with a projected radius of the initial drawing.

Do I redraw the regular line over the projected? Sorry, I am not getting the process.


No, just use the projected curves. Make sure they're set to normal not construction curves and they should show in the drawing when yo set the sketch to visible in the drawings workspace.



Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


0 Likes
Message 9 of 12

nikerochine
Participant
Participant

Just as a follow-up. is there a way to change that line into to dashed line in the drawing module? or it will need to remain solid?

0 Likes
Message 10 of 12

TheCADWhisperer
Consultant
Consultant

@nikerochine

A lot of unconstrained and "fishy" looking geometry in that sketch.

And I would pattern features rather than sketch geometry.




0 Likes
Message 11 of 12

HughesTooling
Consultant
Consultant

@nikerochine wrote:

Just as a follow-up. is there a way to change that line into to dashed line in the drawing module? or it will need to remain solid?


It should ba a dashed line but the length of the curve might mean it looks solid. Looking at an exported drawing the sketch ends up on a layer, Reference and uses the Phantom2 line type. There doesn't seem to be any control over this in Fusion.





Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


0 Likes
Message 12 of 12

laughingcreek
Mentor
Mentor

@nikerochine wrote:

Just as a follow-up. is there a way to change that line into to dashed line in the drawing module? or it will need to remain solid?


you can change the line type for exposed sketches in drawings from document settings-
