Modeling specific metric thread with coil

[rrauenza]

I need to model an internal thread of M6 with a 4m pitch (this is for a PC4-M6-4).  This profile isn't in the thread menu and I don't want to just add it to the xml file -- because then it isn't loadable by others.

I see lots of tutorials on how to make custom threads -- but I don't exactly want an arbitrary custom thread -- I want a specific thread that has specific specifications.   The wiki article on metric threads has a diagram, but I don't know how to convert those specs into a proper coil.  I know it is a triangular profile, but it's also truncated at the top.

For the model, just assume a cube with an M6 threaded hole.  Can someone show me what parameters are required?

[rrauenza]

Ah, was in the middle of editing, but the edit period expired, and I can't seem to delete the post.

I need to model an internal thread of M6 with a 4m pitch (this is for a PC4-M6-4).  This profile isn't in the thread menu and I don't want to just add it to the xml file -- because then it isn't loadable by others.

Actually -- I've misunderstood the component's specs.  It's a M6 with 1mm pitch, which is in the menu.  But in general -- how would I model metric threads with coil if those metric threads weren't in the thread menu?

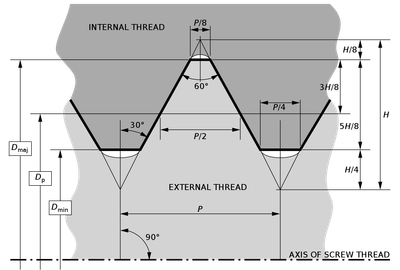

I see lots of tutorials on how to make custom threads -- but I don't understand how to map the metric specifications to a coil.   The wiki article on metric threads has a diagram:

For the model, just assume a cube with an metric threaded hole.  Can someone show me how to map those to the coil?

[davebYYPCU]

Coil Command has various options,

Use Triangular section,

Diametre is the nominal diameter from the spec diagram,

pitch is distance / height per revolution.

Extrude cut a cylinder to make the flats and extrude join a cylinder to make the material flats

Might help...
