I need help understanding why my flat pattern wont export

I need help understanding why my flat pattern wont export

J_matzinger
Explorer Explorer
234 Views
5 Replies
Message 1 of 6

I need help understanding why my flat pattern wont export

J_matzinger
Explorer
Explorer

A. can you get it to export for me.

B. what am I doing wrong to make this error happen

0 Likes
235 Views
5 Replies
Replies (5)
Message 2 of 6

dsouzasujay
Autodesk
Autodesk

Hi @J_matzinger ,



Its Expected, You cant directly export Sheet Metal Flat Pattern. I have two alternative solutions

  1. Solution 1:  Unflod and export
    (view in My Videos)
  2. Solution 2: Derive and export
    • (view in My Videos)


If my answer helped, please 'Accept Solution'


Join Fusion Insider


Sujay D'souza
Autodesk Fusion

0 Likes
Message 3 of 6

TheCADWhisperer
Consultant
Consultant

@dsouzasujay

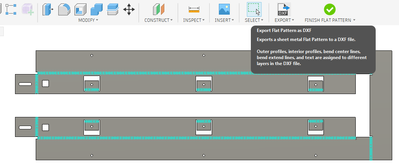

Click on image above to enlarge the view.



But there are multiple issues with the design.

0 Likes
Message 4 of 6

TheCADWhisperer
Consultant
Consultant

@J_matzinger

Many of your sketches are not fully defined.

Each sheet metal body should be a different Component.

There is an unresolved issue highlighted in your Timeline.

One of your parts is not modeled with all cut edges perpendicular to the flat.






Message 5 of 6

johnsonshiue
Community Manager
Community Manager

Hi! I took a quick look at the Sheet Metal design. I am not seeing a critical issue. Flat Pattern Export should have worked regardless. It seems that Fusion has trouble exporting the the cut geometry created by Extrude17. If it is suppressed, the FP Export will work.

There is also a simple workaround to avoid the issue. Create a zero-distance Offset Surface on the inside faces. Then use Thicken -> Intersect to ensure the side faces are all perfectly perpendicular to the Sheet Metal faces.

Many thanks!



Johnson Shiue (johnson.shiue@autodesk.com)
Software Test Engineer
Message 6 of 6

rosie_lucas1
Autodesk
Autodesk

Hello @J_matzinger

Just checking in—did the responses shared by @dsouzasujay, @TheCADWhisperer, and @johnsonshiue help clarify your question?

If so, please consider clicking the "Accept Solution" button on the post(s) that solved your problem. Doing so helps others in the community easily find useful answers.

If your question still needs more attention, feel free to reply here with an update. This way, other members can jump in with further suggestions or guidance to help you move forward.

All the best,

Rosie | Community Manager

0 Likes
