How to make flat faces rounded?

beckmx14
Participant
Participant

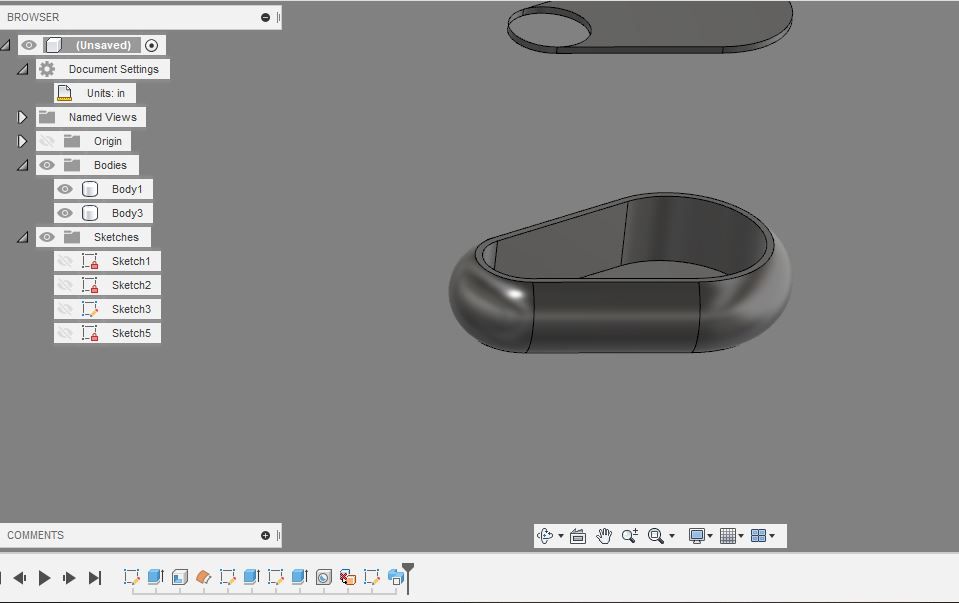

hello guys, I was wondering how to make flat faces rounded or with radius, a little more like fillet but for faces, for instance if I extrude a box, how can I make that extruded face rounded, I am attaching what I have with my flat faces and an example of what I would like or what I mean with "round faces"

0 Likes
5,238 Views
5 Replies
Replies (5)
Message 2 of 6

TheCADWhisperer
Consultant
Consultant

File>Export and then Attach *.f3d file here.

0 Likes
Message 3 of 6

beckmx14
Participant
Participant

this is the file

0 Likes
Message 4 of 6

wmhazzard
Advisor
Advisor

You can sketch on the XZ plane and project the body, then sketch an arc like you want then sweep it around the outside to join to your body. But first you have to fix your original sketch, otherwise the sweep won't work. You need dimensions and tangent constraints between the circles and lines then delete the bottom fillet. I have no idea what you want to do with the lid but it would be best to delete it and start over for it.

In the future, please embed any photos instead of attaching them.


0 Likes
Message 5 of 6

Johnc911
Advocate
Advocate

Here's another way you might find useful to add to your toolbox.



https://autode.sk/2tcOCJp





Message 6 of 6

jmyler
Observer
Observer

This saved me. Thank you for posting this. Never used these features before.
