How to form skewed surfaces?

jkajiyama
Explorer
Explorer

What I have so far.What I have so far.Sketch to be copiedSketch to be copied

0 Likes
Accepted solutions (1)
2,471 Views
16 Replies
Replies (16)
Message 2 of 17

johnptc314159
Collaborator
Collaborator

what to you want to do ???

0 Likes
Message 3 of 17

shahriarsifat1802164
Collaborator
Collaborator
Accepted solution

Hi,
In this case, you can easily make a required plane on the top surface with an angle >> make some required sketch >>loft the sketch to the top of the body.
If you have any query left, feel free to submit.
Thank you

Md. Shahriar Mohtasim
Dept. of Mechanical Engineering,
RUET

LinkedIn | Facebook | Youtube (CADs) | Twitter

Autodesk Product Users, BD





If you found this post helpful please hit the LIKE button and for a solution hit the ACCEPT SOLUTION.


Thank you.

Message 4 of 17

TheCADWhisperer
Consultant
Consultant

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

0 Likes
Message 5 of 17

jkajiyama
Explorer
Explorer

Here is my f3d file. I hope you can teach me how to make skewed planes/surfaces.

0 Likes
Message 6 of 17

jkajiyama
Explorer
Explorer

I am having trouble recreating the sketch that I have in 3D because of the presence of the skewed surfaces on the back segment of the sketch.
Back segment of the sketch I want to recreate in 3DBack segment of the sketch I want to recreate in 3D



Back part that I have so farBack part that I have so far



0 Likes
Message 7 of 17

johnptc314159
Collaborator
Collaborator

in design mode you can create construction planes that you then select to sketch on.

you will find it under the construct tab.............make a plane then start a sketch on it. 🙂

0 Likes
Message 8 of 17

johnptc314159
Collaborator
Collaborator

see simple attachment 🙂

0 Likes
Message 9 of 17

TheCADWhisperer
Consultant
Consultant

What is the purpose of Sketches 1-6, 8 & 12?



Where are you sketch dimensions?



Is this a school assignment?


Notice that all lines are black (fully defined), no blue lines.



0 Likes
Message 10 of 17

TheCADWhisperer
Consultant
Consultant

@shahriarsifat1802164 wrote:

If you have any query left, feel free to submit.

I have a query.

Can you Attach the *.f3d file (or at least an image) of your solution?




0 Likes
Message 11 of 17

TheCADWhisperer
Consultant
Consultant

@jkajiyama

It looks like @shahriarsifat1802164  and @johnptc314159 have left.

See the Attached file.



Use caution and examine carefully as I am not sure my "solution" is correct.

If it isn't - I am sure the others will pipe in.

0 Likes
Message 12 of 17

davebYYPCU
Consultant
Consultant

I was not able to complete the model to accord with the 3 views,

but my most logical version ended up with the same top quarter view as yours.



Your model would create a solid line in the top view that does not exist, and

both of us do not address a hidden line in the front view.

Take the front view lines from top left, to mid point on the right -

the lower half of that line goes where?



If we delete that hidden line, I can finish the model, with 2 surface panels.

or loft that line to be non planar, and not be in the scheme of things.

I am 5 hours from a desktop to follow up.







0 Likes
Message 13 of 17

TheCADWhisperer
Consultant
Consultant

@davebYYPCU wrote:

I was not able to complete the model to accord with the 3 views,

but my most logical version ended up with the same top quarter view as yours.


I suspect that there are some errors in the provided geometry.

I was hoping the OP would continue the discussion so that we could address these issues.



I think I could do it with some twisted surfaces, but I suspect this was a school assignment with only planar faces.  If it is a school assignment - I will wager that the instructor got it wrong.

0 Likes
Message 14 of 17

davebYYPCU
Consultant
Consultant

Yep, was happy to say nothing when I hit the wall - all planar faces.

Just that one hidden line!!!



0 Likes
Message 15 of 17

davebYYPCU
Consultant
Consultant

I can comply with top quarter view, with the loft and ignore this line.






0 Likes
Message 16 of 17

jkajiyama
Explorer
Explorer

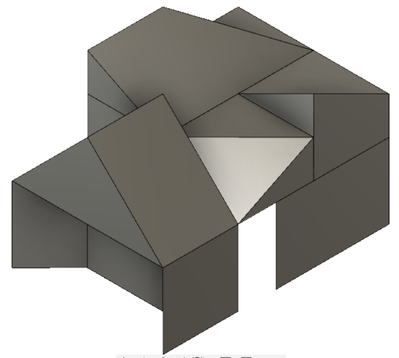

Screenshot 2020-12-08 072746.png

 Hello everyone, sorry for the late response. The solution that worked for me was constructing an angled plane and sketching on it, the sketch will then be lofted on a flat surface directly below it. that process resulted to this 3d model.

While building the model, I realized that something about the reference is not right. This is the reason behind the difficulties while transferring the sketch to fusion360. Either my isometric drawing is incorrect, or the multiview projection given by the instructor is not possible in the first place (and yes, this is a university assignment).

That is my own problem now as it is not included to the scope of my initial question (skewed surfaces), but thank you for everyone that tried and pointed out errors in the material given by my instructor. I'm an absolute beginner in fusion360, thank you for your patience.


0 Likes
Message 17 of 17

TheCADWhisperer
Consultant
Consultant

@jkajiyama wrote:


the multiview projection given by the instructor is not possible in the first place ...


Can you ask the instructor to join this discussion?
