Having trouble with simple pipe elbow connector modeling

Having trouble with simple pipe elbow connector modeling

chrisQX8DX
Advocate Advocate
381 Views
6 Replies
Message 1 of 7

Having trouble with simple pipe elbow connector modeling

chrisQX8DX
Advocate
Advocate

so i'm almost ashamed to ask this here since it seems such a simple thing to model ... in my defence: i have a massive cold at the moment so i think my brain is on strike and refuses to solve this simple model. 😫




it's an adapter for a hose on my CNC, going from one inner diameter to another, these two parts are modeled and have been printed and test fitted so now for the final part i need to get the 90° elbow that connects the two, sth like this:



i just can't figure it out, i first though i could just loft the end profiles or loft the edges as a surface and then thicken it. then tried sweep, revolve, whatever i do the solution eludes me ...



there's gotta be a simple way to do this ???







AppleSilicon Macos 26.4

==================================================
GENERAL DISCLAIMER: if there isn't a file attached to my posts then there is a reason for it. Whenever needed or whenever i can i will attach a file for troubleshooting. If no file is attached i will always try to explain as clearly as possible and if needed or helpfull provide illustrative screenshots. When i have an issue that can only be helped by attaching a file which i cannot share publicly i won't ask about it here.
0 Likes
Accepted solutions (1)
382 Views
6 Replies
Replies (6)
Message 2 of 7

kacper.suchomski
Mentor
Mentor

Hi

You can use G2 tangency instead of guide path.

(view in My Videos)


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


0 Likes
Message 3 of 7

chrisQX8DX
Advocate
Advocate

hey thx so much for the quick reply, that works but doesn't create a perfect 90° angle but is squeezed in the middle:








AppleSilicon Macos 26.4

==================================================
GENERAL DISCLAIMER: if there isn't a file attached to my posts then there is a reason for it. Whenever needed or whenever i can i will attach a file for troubleshooting. If no file is attached i will always try to explain as clearly as possible and if needed or helpfull provide illustrative screenshots. When i have an issue that can only be helped by attaching a file which i cannot share publicly i won't ask about it here.
0 Likes
Message 4 of 7

davebYYPCU
Consultant
Consultant
Accepted solution

You should never use Move Tool as you did - moving a body off file origin / Sketch.

You are correct, Surface Loft and Thicken > Join, will give the best efficient result.  Solid Loft cannot do tubing.

A Spline for the centre line Rail - you lose control of the Loft.






Reconstruct sketch 3, with the inside fillet to your desired radius.  (Max about 8mm) Larger will shorten the straight rail lines.

When sorted, use Surface Loft, select the body outside edges, select both Rails, and set Tangency to those bodies, will bring the top view shape into a smooth transition






Might help...

Message 5 of 7

jhackney1972
Consultant
Consultant

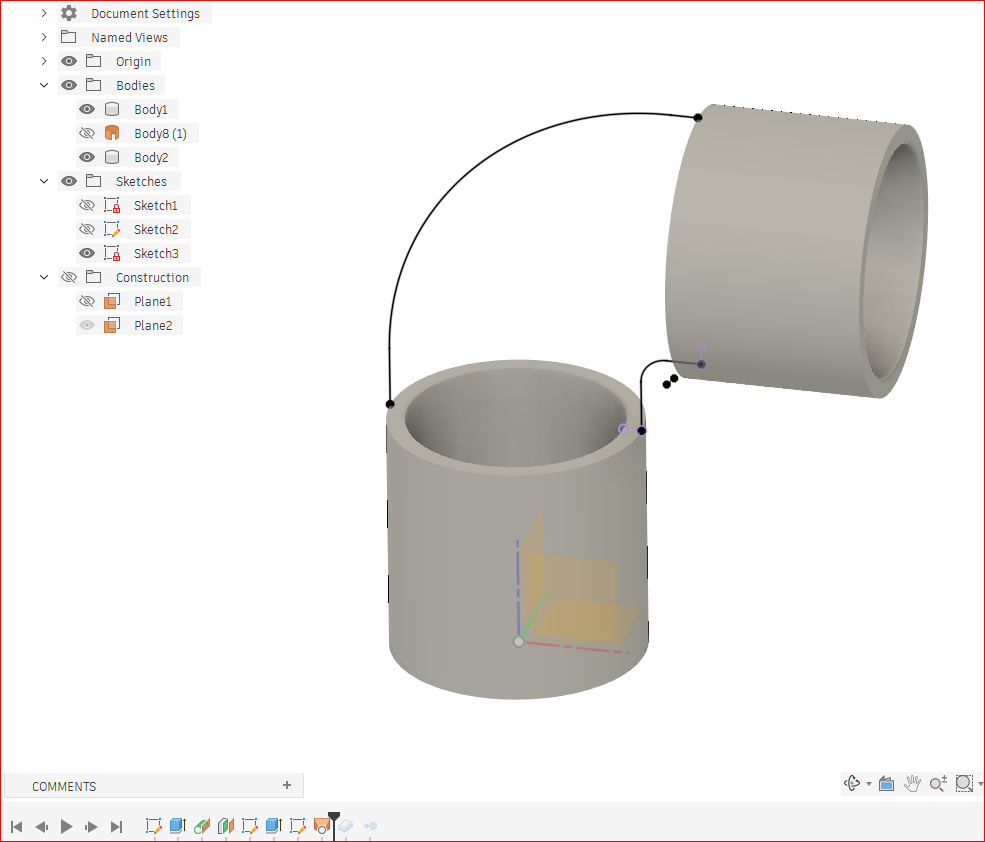

According to your screen capture, you would like to loft the inside diameters of each ring.  The error you are incurring is due to the incorrect path which causes the loft to intersect itself.  The path needs to be generated with an Arc and a Line.  I have attached two models. one as you show in your screen capture and one with the outside used as the body size.  The one using the diameter you show does not have an inside diameter because you did not specify it.  The one using the outside profile does as I used the ID of each end to loft the inside cut.  One other thing you need to know, you cannot Loft a hollow object.  You must create two Lofts, one for the outside solid and one for the inside cut.





John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 6 of 7

TheCADWhisperer
Consultant
Consultant

@chrisQX8DX

See my guess attached.




0 Likes
Message 7 of 7

pkomatlapalli
Community Manager
Community Manager

Hello @chrisQX8DX ,

It looks like you have received a lot of advice on this thread. Did any of the replies by @davebYYPCU  and @TheCADWhisperer  answer your question?

If you are still needing more help, please share an update here. The community will be happy to jump in and suggest more steps to help you get where you need to be.

Best,

Pavan Kumar| Community Manager

Pavan Kumar | Community Manager
0 Likes
