Expandable Ring Toy Design

[alhasaniabdulla]

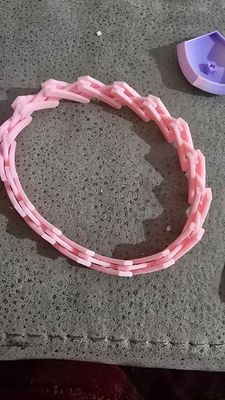

Hi everyone! I found this expanding ring on maker world https://makerworld.com/models/1330064 ;

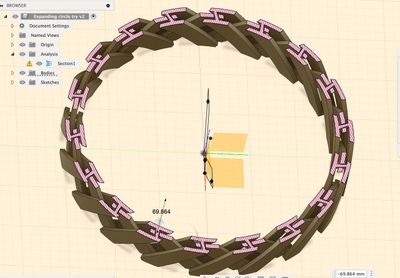

Im interested in learning how to design its mechanism. Any idea on How I could design it in fusion360? I've extruded my sketches on to thin extruded circles through surfaces. I feel like im close; but stuck at the hinges. Are the hinges supposed to be curved or straight? any advice is much appreciated!

 

 

 

 

 

@alhasaniabdulla- this post has been edited due to Community Rules & Etiquette violation.

 

[davebYYPCU]

Suspect you need one Slider Joint, I also suspect that Fusion can model a closed and an Open version, but will not easily animate it, due to real life sloppy Joints, and Fusion being too accurate for those.

I do think you will get it with 3 ball joints to join one piece to others, (Not my nightmare).

Might help...
