Edit tables in 2d Drawing

Anonymous

Edit tables in 2d Drawing

Anonymous
Not applicable

Hi evenrybody,

In order to maintain a more redeable view of Components browser I use to create tree view to aggregate specific grouped parts (you can see a screenshot attached)

When I create a 2d drawing of this grouped part and i Put a BOM table inside the sheet I obtain something different : the material row is overwritten using only the first branch material text and second branch of the tree are grouped (as yuo can see I use BOLTS for one type of bolt and one of nut)

May I overwrite this text somewhere or edit BOM tables preference ?

Thank you

Andrea



0 Likes
Reply
Accepted solutions (1)
10,835 Views
10 Replies
Replies (10)

paul.clauss
Alumni
Alumni
Accepted solution

Hi @Anonymous



Thanks for posting! There is no way to edit the automatically created BOM tables in Fusion 360 at this time - this option does appear to be "in progress" for our drawings development team. You can view the Drawings Roadmap at this link for more information on what is coming to the drawings workspace in Fusion.



In the meantime, you may be able to workaround this problem by creating an empty table (rather than a BOM table) and manually inputting the information into the table. While this is time consuming, it will give you more flexibility than the current BOM tool.

emptytable.pngHopefully this helps! Please let me know if you have any questions.

Paul Clauss

Product Support Specialist




0 Likes

Anonymous
Not applicable

Thank you for your reply, infact I use empty table as workaround. I hope that some tools is implemented soon



Thank you

Andrea


1 Like

sales3MPAD
Enthusiast
Enthusiast

Did this ever get fixed?  I mean it has been 3 years now.

0 Likes

g-andresen
Consultant
Consultant

Hi,

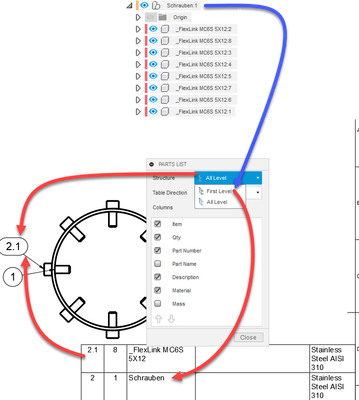

take a look at:

all level2.png

gรผnther

0 Likes

sales3MPAD
Enthusiast
Enthusiast

I was looking to edit the table directly, not edit the actual part.  Something like an actual table editor.

0 Likes

g-andresen
Consultant
Consultant

Hi,

take a look at the options.

Are you looking for "Empty table" ?

empty table.png

gรผnther

0 Likes

sales3MPAD
Enthusiast
Enthusiast

No I was looking to use a partslist, but then be able to edit it.

0 Likes

g-andresen
Consultant
Consultant

Hi,

Parts lists are automatically filled by the properties.



gรผnther

0 Likes

Salient1492
Contributor
Contributor

What he and I am looking for is to simply use the Auto Parts Table generation then Edit it...Otherwise It's very time consuming to create a complete blank table from scratch. For example, I'd like the default part table without the 'Material' column..

0 Likes

Salient1492
Contributor
Contributor

It appears in Fusion Jan 2022 - you 'Double-Click on the table and a 'Parts List' properties dialog will open.



I will offer this is confusing - as Fusion Entities have Right-Click option flyout menus - so one does not know what will access what.



Also, The table properties option should be available from the Right-click AND a double-click.

Fusion360 Edit Parts Table.png
