Digital Elevation Model, terrain mapping

ea425019
Advocate
Advocate

So while F360 may not be designed for this, any ideas as to how best to implement this plan?  The application is a preliminary assessment of solar cell geometries on a piece of land.



I took waypoints matched to a barometric altimeter for a rectangular plot.

I wish to make a 3d model that appears contoured to the land relative to a flat plane.



I am guessing I can set each waypoint as a cylinder at height. Then loft between them. Is this wise, or anything else seem right? Photo below shows the waypoints, altitudes are recorded but not shown.



Thanks.


0 Likes
4,495 Views
16 Replies
Replies (16)
Message 2 of 17

davebYYPCU
Consultant
Consultant

Plot the heights, use spline curves in a layout sketch, use move to lift each spline to height, then see if loft can manage the actual data.



Might help...

0 Likes
Message 3 of 17

jodok.schaeffler
Participant
Participant

I have the exactly same situation: model terrain from a surveyors data. The spline and loft method did not work for me, I always got error messages - either the loft intersecting with itself, or that there were problems with one or more points of the profiles.



How can I model a terrain from height data as is shown here?



Thanks



Jodok

0 Likes
Message 4 of 17

davebYYPCU
Consultant
Consultant

Are you referring to the original pic in this thread, or something you have but has not turned up in your post?



To be a little clearer, I would have a sketch plane for each layer of height,

project only the points for that height, connect the dots with splines.



If the Loft is not working, Extrude in layers, it may become clearer why the data is self intersecting.



Always easier for us to speak to the data in your file, than speak in abstract terms.



Might help....

0 Likes
Message 5 of 17

jodok.schaeffler
Participant
Participant

I am actually replying to the same type of picture, that's why I did not upload my picture.

You see my picture below.



What I am trying is to define the terrain based on the elevation information in below map.

I would like to use this as an object in a model of the house to be built on this parcel.

The map only shows elevation information in the points that were measured in the field.

I would like to define a terrain that smoothes between these measured points.

The measured points have a defined height, everything in between should be a 3D spline area.

I would like to use Fusion 360 to interpolate between the measured points as described and define

a terrain surface that includes all the measured points.



How do I do this best?



I am also using Twinmotion from Epic Games for visualization.

I would like to export the object that was built in Fusion 360 in a format

that can be imported by Twinmodtion as a 'Landscape'.

This can be

- Heightmaps (.r16, .png)

- Points (.txt, .xyz)

- Meshes (.skp, .fbx, .obj, .c4d)



What would be the best format here, considering that the data volume is limited.

At most you would look at the number of measured points in the high tens.



Thanks for your help!



Jodok













Example Map Terrain.jpg









0 Likes
Message 6 of 17

davebYYPCU
Consultant
Consultant

Once you have your model of those formats listed, you can Export it as obj.



Might help.





0 Likes
Message 7 of 17

jodok.schaeffler
Participant
Participant

Thank you for answering the question on the file format.



However, before I can export the object, I have to create it.

your initial proposal was to use a sketch plane for every height value and create individual  height lines for these height values..

in my case there would be several of these sketch planes with only one or two height points in it. I have not tried, but I assume this would not be useful for the loft command.



Could you give me a step by step instruction for creating a mesh between these height points and then converting this mesh into a freeborn object?



Or is there another way to achieve the desired landscape shape?



Best



Jodok

0 Likes
Message 8 of 17

jodok.schaeffler
Participant
Participant

... ‚freeforn object‘... instead of ‚freeborn object‘

0 Likes
Message 9 of 17

davebYYPCU
Consultant
Consultant

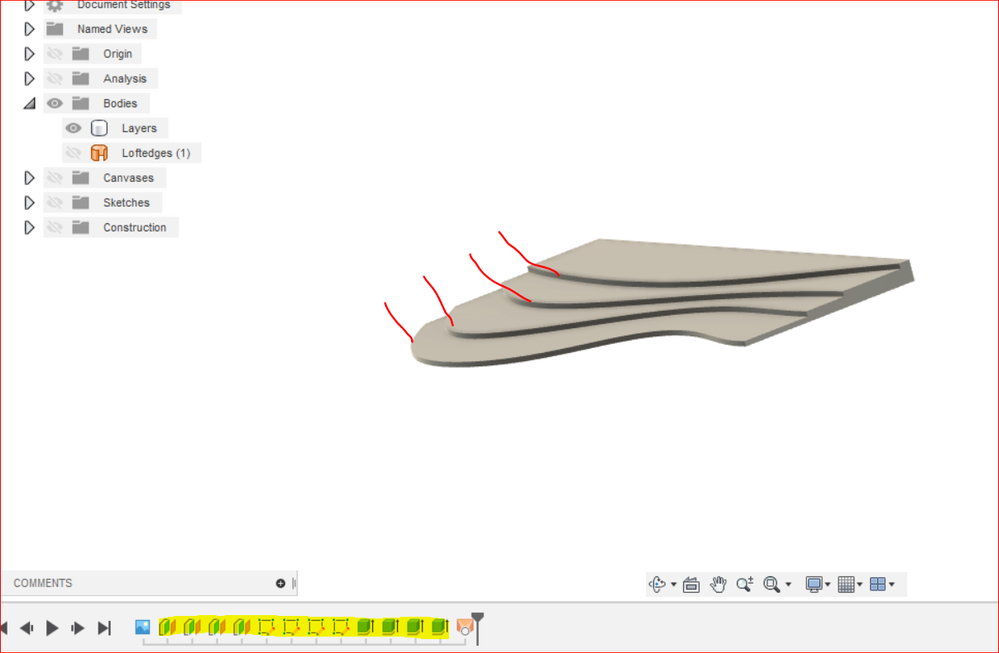

Cant read the height levels - so made them up.
