Constraint Bug ?

Constraint Bug ?

etfrench
Mentor Mentor
628 Views
4 Replies
Message 1 of 5

Constraint Bug ?

etfrench
Mentor
Mentor

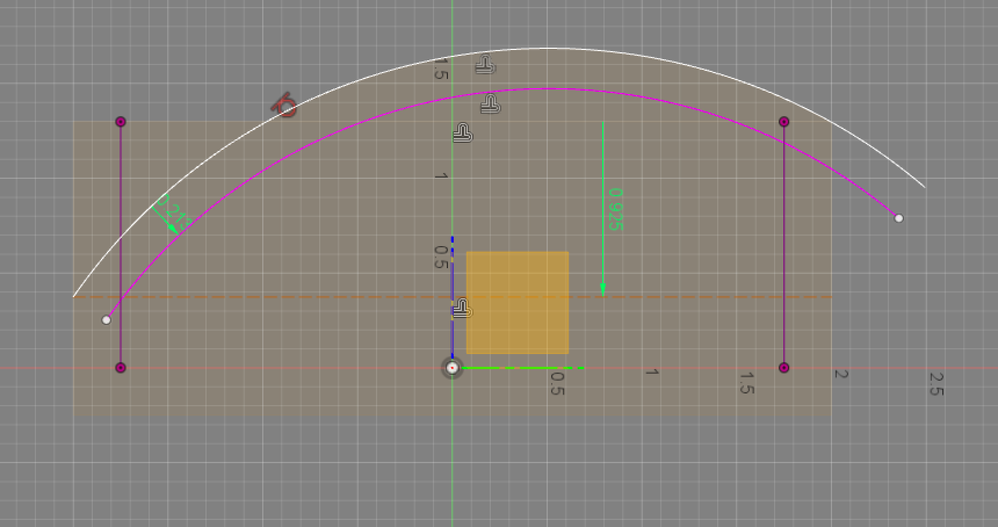

Simply adding a line or projecting a point to the sketch skews the previously created three point arcs.



ETFrench

EESignature

0 Likes
629 Views
4 Replies
Replies (4)
Message 2 of 5

cekuhnen
Mentor
Mentor

@etfrench





Yeah we should send this to Jeff to look at.



@jeff_strater

Claas Kuhnen

Faculty Industrial Design – Wayne State Universit

Chair Interior Design – Wayne State University

Owner studioKuhnen – product : interface : design

0 Likes
Message 3 of 5

jeff_strater
Community Manager
Community Manager

Hi @etfrench,



It looks like the problem is that tangent constraint.  If you look at the error for that sketch, you can see that this constraint is the error in this sketch.

Screen Shot 2017-08-20 at 1.37.58 PM.png



If you delete this constraint, this behavior does not occur.  The weird thing is:  It's not clear what this tangent is supposed to do.  I don't see what the "other" geometry is for this constraint.  Do you have any recollection of when this constraint was added, and what it was supposed to do?



Jeff




Jeff Strater
Engineering Director
0 Likes
Message 4 of 5

etfrench
Mentor
Mentor

The three point arc was created by selecting end points on the construction line and tangent to the top line which was created when the sketch was created using the face of component1 as the base.  (Don't you just love run on sentences Smiley Happy )  I'm not sure why the end of the arc is no longer coincident with the construction line.

ETFrench

EESignature

0 Likes
Message 5 of 5

jeff_strater
Community Manager
Community Manager

filed as FUS-34745.  Thanks for the info and sharing the design.  We'll try to track down how this happened.



Jeff




Jeff Strater
Engineering Director
0 Likes
