Hello dear fellow fusioneers,

i have created this simple shape because I was trying to get the pattern on the thicker part closer together without destroying the upper, thinner part. I know that this is possible because I have seen similar designs created with Fusion360, but not sure how.
This is a simple circular pattern with 30 multiplies. the more I chose, the more destroyed the thinner part on top looks. Help please

2025-04-04 15_31_05-Clipboard.png

0 Likes
584 Views
17 Replies
  • Help
Replies (17)
Message 2 of 18

g-andresen
Consultant
Consultant

Hi,

please show such an example



günther

0 Likes
Message 3 of 18

info9BFML
Explorer
Explorer


0 Likes
Message 4 of 18

Warmingup1953
Advisor
Advisor

I'm not seeing "the more destroyed". Isn't this simply a maths question? The ratio it appears of thickest to thinnest on the flower pots is a lot smaller number than on your Aladdin's Lamp.

Message 5 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

Your model does not look like the reference image that you supplied (grooves are not getting wider towards base).

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

0 Likes
Message 6 of 18

info9BFML
Explorer
Explorer

I made a 2nd, much thinner version but its still the same outcome, maybe my way of achieving this is wrong.

I project the shape of the model, offset 2mm to the inside, extrude symetrie 1mm and then circular pattern.

The top is as close as it can get but at the bottom there is still space for another pattern, see ref image.



2025-04-04 19_50_14-Clipboard.png

0 Likes
Message 7 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

None of your sketches are fully defined.

Are you ready to start over from scratch with step-by-step instructions?

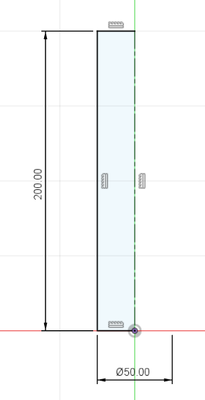

Step 1.

Sketch this Rectangle...




Step 2

Add this Construction Line




Step 3.

Add this 3-Point Arc...


Do you observe any duplicated dimensions in my sketch?

Attach your progress file here for next set of steps.





0 Likes
Message 8 of 18

info9BFML
Explorer
Explorer

Thanks for the help

0 Likes
Message 9 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

Your sketch doesn't look like my sketch.

I toggled to Centerline while you toggled to Construction line.

I use Ø50 dimension while you use R25.




0 Likes
Message 10 of 18

info9BFML
Explorer
Explorer

Sorry, I don't know how to use Ø on a Line

I think I got it

0 Likes
Message 11 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

Start the Dimension command.

Pick the Centerline.

Pick the lower left endpoint.

Fusion will automatically create a diametral dimension because you picked centerline.

0 Likes
Message 12 of 18

info9BFML
Explorer
Explorer

Think i got it

0 Likes
Message 13 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

Blue lines/curves should keep you awake at night.

Try click and drag the blue geometry.  What do you observe?



We could fix this, but I recommend you start over and follow the instructions exactly.

0 Likes
Message 14 of 18

info9BFML
Explorer
Explorer

Sorry, I don't know what you mean, quite new to Fusion. Think Ill pass then, but thanks for the try, apreciated

0 Likes
Message 15 of 18

TheCADWhisperer
Consultant
Consultant

@info9BFML

Follow Step 1-2-3 in order without skipping any steps.

If you get stuck at any step - stop and ask questions.

0 Likes
Message 16 of 18

etfrench
Mentor
Mentor

Add a little drama using a Surface Sweep, Split Face, and Pipe command:




ETFrench

EESignature

0 Likes
Message 17 of 18

TheCADWhisperer
Consultant
Consultant

I was envisioning something more like this.


0 Likes
Message 18 of 18

etfrench
Mentor
Mentor

That's a nice look.   A loft with carefully selected profiles can give a different look:




ETFrench

EESignature

0 Likes
