Centering an SVG... SO Frustrating!

[michaelrkoerner]

Hello Everyone:

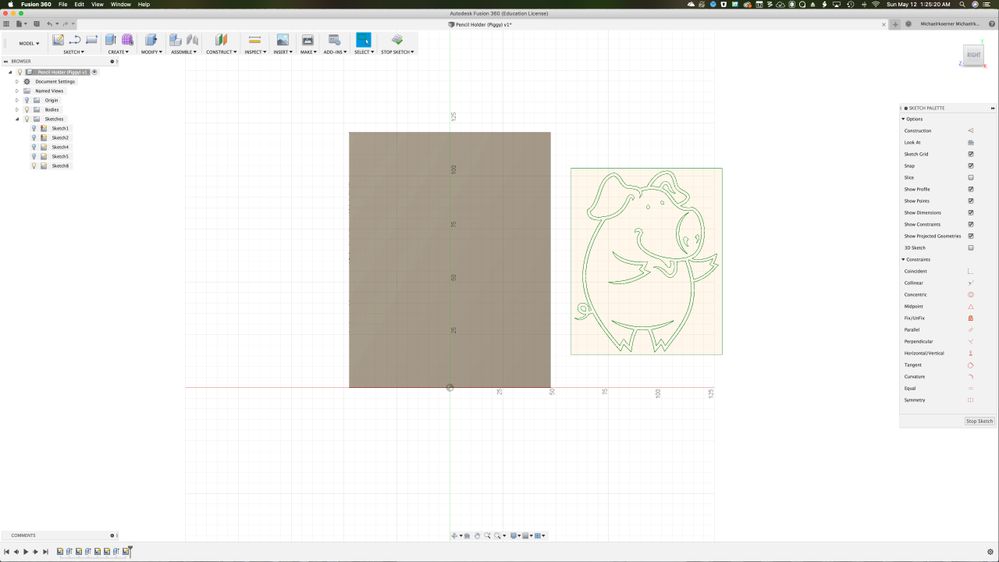

I'm having a heck of a time trying to center this imported SVG to a Face in Sketch. Any help or guidance would be greatly appreciated... Here is a photo of what I'm trying to do. On the right is my imported SVG file and I'd like to simply center it on the rectangular face to the left.

Thanks in advance...

Michael K

[davebYYPCU · Accepted solution]

Create a construction line and centre point on the plate.

Create a construction line on the SVG, with a centre point.

Select all  the SVG and use the unlock constraint to release the SVG,

Select the svg, again, use Move, Point to Point, with the two new centre points.

Might help....

[g-andresen]

Hi,

Step 1: unfix

unfix

lines are blue > and then as @davebYYPCU  describes

günther

[michaelrkoerner]

Thanks everyone! That helped!

[a.duran45]

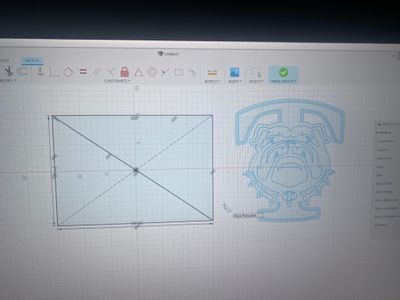

i tried the same with my act and no luck what’s the deal

 

[TheCADWhisperer]

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

[etfrench]

Assuming the right hand geometry is symmetrical, draw a line from the midpoint of the top arc to the midpoint of the bottom arc. The midpoint of that line will be the midpoint of the geometry.
