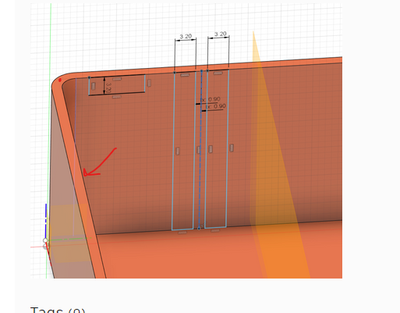

Stuck on this simple task, I want to dimension the blue highlighted construction line 30mm from the inside of the box (left side). I cannot get that to dimension because the box corner is curved.
So I created an offset plane which is where I want my construction line to meet along the wall, however cannot figure out how to do it.
Any help please?
Use the Project command under Create in Sketch:
If the plane is perpendicular to the sketch plane, this will create a line in the sketch. If it is not, use the Intersect version:
Actually, even if the plane is perpendicular, Intersect will give the right answer, so that is probably the easiest way...
use the regular type of project (keyboard short cut P) and select this edge (or the face below it)-
you'll get a purple sketch article in your sketch you can dim from (about where I out the dot in the pic)
