Base projection on Drawing shows lines when 'Shaded' only is selected

[DanielPLongo]

When I choose to display a base projection on a drawing as shaded without any edge options selected, it looks good (shaded representation only) until the very last when the calculation finishes. Then, everything has edges as well as being shaded.

[TimelesslyTiredYouth]

Hi @DanielPLongo

For the rendering issue, check the rendering settings to ensure edges are not enabled, and make sure you're using the "Shaded Without Edges" option. If the issue persists, adjusting graphics settings or switching between different modes might help resolve it.

For the suppression issue, can't help much there sorry, I would just advice you to @ one of this forum's gurus

[DanielPLongo]

As stated above, yes, the correct options are selected. The image appears correctly in the preview until it is finished and then the lines appear.

[johnsonshiue]

Hi Daniel,

If possible, please share the f3z file here. The forum experts can help take a closer look to understand the drawing issue better.

Many thanks!

[DanielPLongo]

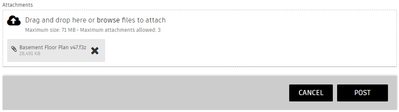

I am trying to attach the file and get this message:

Even though the file extension is correct when I select it:

[jhackney1972]

You need to ZIP the F3Z file first.  The Forum is not accepting F3Z files directly.

[DanielPLongo]

Here is the zip file. Thanks for the heads-up.
