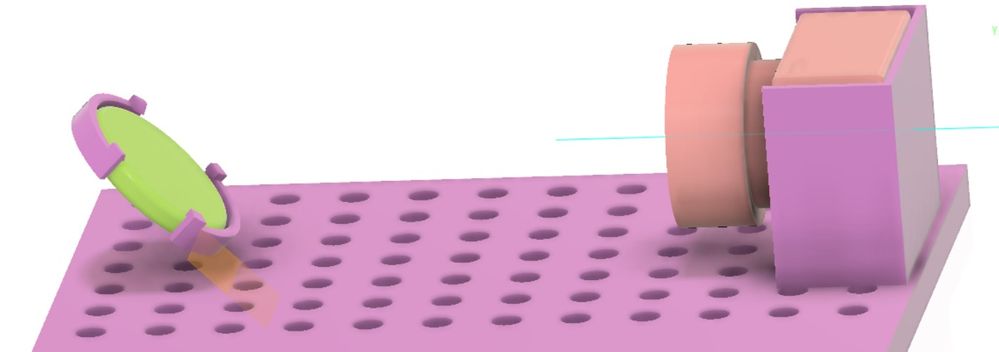

I need to align the center of a light source to the center of a mirror that was constructed on a plane tilted 45° to the light beam. I thought of using the sketch projection feature, but that appears to always project objects orthogonally to the sketch plane. Is there a clean parametric way of resolving this, or do I have to resort to brute-force trigonometry? Many thanks for any help/hint!
Have you made all the parts as individual components and followed Rule #1? You should be able to project a point on to a sketch created on the angled plane, then add a joint origin in the correct orientation. Then use a rigid joint between the back of the mirror and the joint origin.
Mark
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
After mocking up a simple model I think I see the problem. Does the screencast below help. You can't just use a constitution point on the plane because its orientation XYZ are not perpendicular with the plane so I created a sketch on the plane and projected the construction point on to it.
Mark
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
I don't really like the method above but if you are working with existing components you'll need something similar. Here's another way building the mirror inplace. This way seems a lot cleaner way of doing it with less features.
