How can I capture facets from a surfaces using the API ?

4 REPLIES 4
SOLVED
Reply
Message 1 of 5
bravaiser
601 Views, 4 Replies

How can I capture facets from a surfaces using the API ?

I used Inventor during my Ph.D. and now I want to port and existing piece of software to create patterns on highly curved surfaces automatically. But I can not find a couple of calls used the Inventor API inside of FUSION. One of them is the CalculateFacets() method http://adndevblog.typepad.com/manufacturing/2013/11/getexistingfacets-and-calculatefacets.html



Here some examples of what I can do using the tool on Inventor. Any suggestions on where to look first?



Facade



Hyperboloid

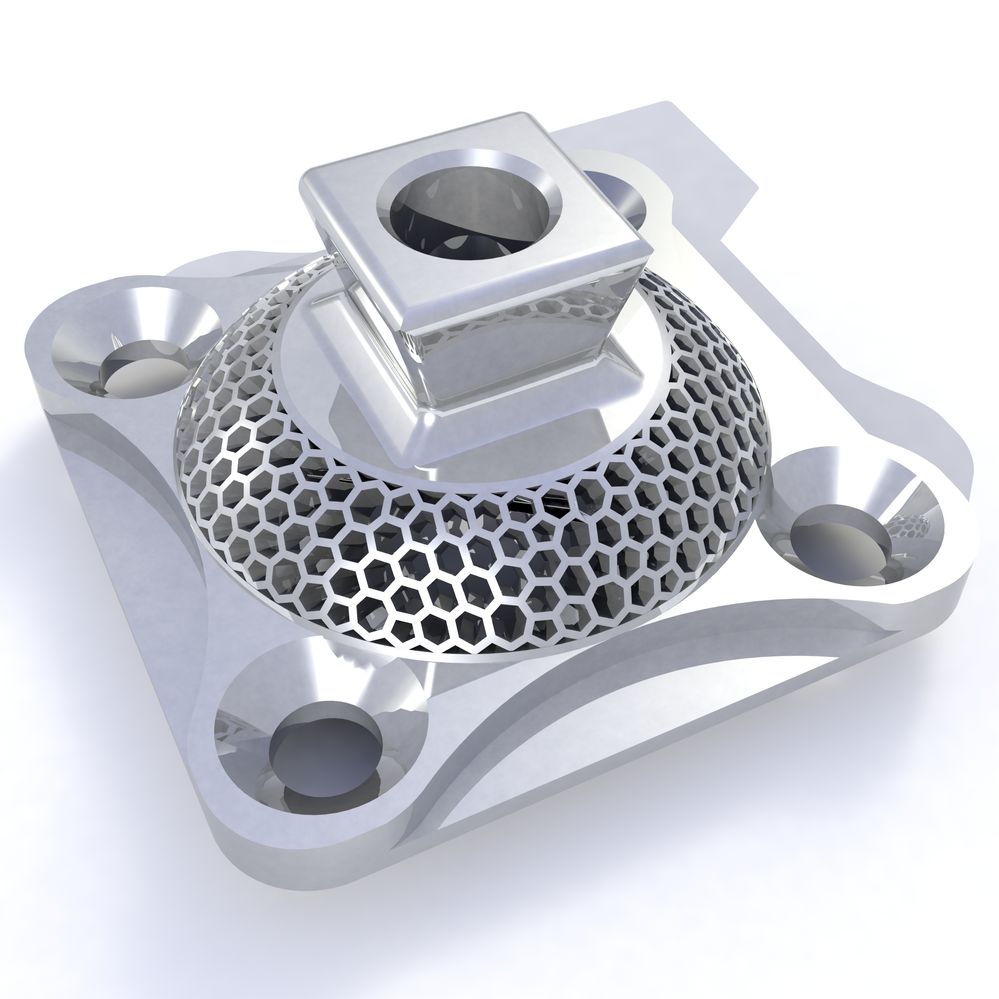

Automated Generation of Repeated Geometric Patterns for Customized Additively Manufactured Personal ...






Thank you

4 REPLIES 4
Message 2 of 5
ekinsb
in reply to: bravaiser

The equivalent of the CalculateFacets method in Fusion is that from the BRepBody or BRepFace object you can get a MeshManager object using the meshManager property on each of those objects.  The MeshManager object lets you accessing the existing display meshes but also supports the createMeshCalculator method.  On the MeshCalculator object you can set various parameters to control how the mesh is calculated and then call the calculate method which returns a TriangleMesh object that has all of the information about the mesh.  Below is something similar to what you've done that I did with this functionality in Fusion.















Brian Ekins
Inventor and Fusion 360 API Expert
Mod the Machine blog
Message 3 of 5
bravaiser
in reply to: ekinsb

Thank you, Brian as always... I hope things are well on your side.



-> Porting the code



more questions to come.





Message 4 of 5
bravaiser
in reply to: ekinsb

Brian



Is there a public example of your code? How can I find it?



-b

Message 5 of 5
ekinsb
in reply to: bravaiser

Here's the model and program that I used in the image I posted earlier.  The program is fairly rough since it was just a proof of concept.  There are two functions; one that creates the points on the surface and the second one positions a selected component at the point at a specified depth and random orientation and subtracts it from the model.



import adsk.core, adsk.fusion, traceback
import random, math

def run(context):
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface

        #createPoints()
        createGouges()
        #ui.messageBox('U: ' + str(avgULength) + ', V: ' + str(avgVLength))
    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))


def createGouges():
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface

        des = app.activeProduct
        root = adsk.fusion.Component.cast(des.rootComponent)

        # Have the body selected.
        face = ui.selectEntity('Select a face on the body to cut', 'Faces').entity

        mainBody = face.body

        # Have the sketch with the points selected.
        sketch = ui.selectEntity('Select a sketch in the browser', 'Sketches').entity

        # Have the gouge occurrence selected.
        occ = ui.selectEntity('Select a component', 'Occurrences').entity
        gougeBody = occ.bRepBodies.item(0)

        mainBody.isVisible = False
        baseFeature = root.features.baseFeatures.add()
        baseFeature.startEdit()

        targetBody = mainBody.copyToComponent(root)
        targetBody.isVisible = True
        adsk.doEvents()

        pnts = []
        first = True
        for skPnt in sketch.sketchPoints:
            if not first:
                pnts.append(skPnt.geometry)
            else:
                first = False

        surfEval = face.evaluator
        (returnValue, normals) = surfEval.getNormalsAtPoints(pnts)
        ui.messageBox('Number of gouges that will be created: ' + str(len(pnts)))

        depth = 0.75
        toolBodies = adsk.core.ObjectCollection.create()
        for i in range(0, len(pnts)):
            # Compute the origin of the gouge using the specified depth.
            # The depth could be random but it's not implemented yet.
            origin = pnts[i].copy()
            depthVec = normals[i].copy()
            depthVec.normalize()
            depthVec.scaleBy(-depth)
            origin.translateBy(depthVec)

            zAxis = normals[i]

            # Get a random direction angle.
            angle = random.uniform(0, math.pi * 0.75)

            # Create a temporary X vector using the random direction.
            tempVec = adsk.core.Vector3D.create(math.cos(angle), math.sin(angle), angle)

            # Compute the y axis.
            yAxis = zAxis.crossProduct(tempVec)
            yAxis.normalize()

            # Compute the X axis.
            xAxis = yAxis.crossProduct(zAxis)
            xAxis.normalize()

            trans = adsk.core.Matrix3D.create()
            trans.setWithCoordinateSystem(origin, xAxis, yAxis, zAxis)

            bodyCollection = adsk.core.ObjectCollection.create()
            newGougeBody = gougeBody.copyToComponent(root)
            bodyCollection.add(newGougeBody)
            toolBodies.add(newGougeBody)
            moveInput = root.features.moveFeatures.createInput(bodyCollection, trans)
            root.features.moveFeatures.add(moveInput)

            if (i % 25) == 0 and i != 0:
                combineInput = root.features.combineFeatures.createInput(targetBody, toolBodies)
                combineInput.targetBaseFeature = baseFeature
                combineInput.operation = adsk.fusion.FeatureOperations.CutFeatureOperation
                combineInput.isKeepToolBodies = False
                combine = root.features.combineFeatures.add(combineInput)

                toolBodies = adsk.core.ObjectCollection.create()
                adsk.doEvents()

        if toolBodies.count > 0:
            combineInput = root.features.combineFeatures.createInput(targetBody, toolBodies)
            combineInput.targetBaseFeature = baseFeature
            combineInput.operation = adsk.fusion.FeatureOperations.CutFeatureOperation
            combineInput.isKeepToolBodies = False
            combine = root.features.combineFeatures.add(combineInput)

        baseFeature.finishEdit()

        ui.messageBox('Finished')
    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))




def createPoints():
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface

        des = app.activeProduct
        root = des.rootComponent

        face = ui.selectEntity('Select a face', 'Faces').entity
        meshCalc = face.meshManager.createMeshCalculator()
        meshCalc.surfaceTolerance = 0.9
        meshCalc.maxSideLength = 1
        #meshCalc.maxAspectRatio = .9
        mesh = meshCalc.calculate()

        sk = root.sketches.add(root.xYConstructionPlane)
        sk.isComputeDeferred = True
        skPoints = sk.sketchPoints

        coords = mesh.nodeCoordinatesAsDouble
        result =  ui.messageBox(str(len(coords)/3) + ' points will be created.  Do you want to continue?', 'Continue?', adsk.core.MessageBoxButtonTypes.YesNoButtonType, adsk.core.MessageBoxIconTypes.QuestionIconType)
        if result == adsk.core.DialogResults.DialogNo:
            return

        for i in range(0, mesh.nodeCount-1):
            pnt1 = getPoint(coords, i)
            skPoints.add(pnt1)

        sk.isComputeDeferred = False
    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))


def getPoint(array, index):
    return adsk.core.Point3D.create(array[index*3], array[index*3+1], array[index*3+2])

Brian Ekins
Inventor and Fusion 360 API Expert
Mod the Machine blog
