BUG: 2D Sketch behaves like 3D sketch

3 REPLIES 3
Reply
Message 1 of 4
markusbarnes
295 Views, 3 Replies

BUG: 2D Sketch behaves like 3D sketch

I have 3D sketch turned off in preferences, but for some reason, my sketch is behaving like a 3D sketch:





3D Geometry is turned off3D Geometry is turned off



Sketch geometries are on different planes.Sketch geometries are on different planes.



As you can see from the screenshoot, there is only one sketch highlighted, yet the geometries exist on different planes.  When I try to edit the sketch, it allows me to edit on both planes, but if I perform and extrude, I can only select from one plane at a time.



I have never seen this behavior before.  Perhaps I confused Fusion 360 after repeatedly redefining the sketch plane?

Tags (3)
3 REPLIES 3
Message 2 of 4
OP21
in reply to: markusbarnes

Check the 3D sketch box in the sketch palette. This may be the cause...






Hope this helps!
Omar

P.S. If this did help you, remember to "Accept as Solution", so the answer can help others. "LIKES" are always welcomed and much appreciated! Thank-you.
Message 3 of 4
BrianEkins
in reply to: OP21

Sketches in Fusion 360 are always 3D.  The 2D related settings change the behavior of some commands to limit the construction and edit of geometry in a sketch so that the sketch geometry remains in the X-Y plane of the sketch.  Here's a simple example.  I create a new sketch and draw a few lines.  Now I can use the Move command to move one of the points anywhere, including out of the X-Y plane.








With this point out of the X-Y plane, you can try drawing additional sketch geometry.  If the "3D Sketch" setting is off then as you move the mouse over the sketch points, you'll see that you can only reference points that lie on the X-Y plane and the point moved out is not available.  However, if you enable the "3D Sketch" option, then you can use the point.  So the settings just help to keep things on a 2D plane but it's still possible to move things in 3D and it's always possible for a sketch to contain 3D geometry.

---------------------------------------------------------------
Brian Ekins
Inventor and Fusion 360 API Expert
Website/Blog: https://EkinsSolutions.com
Message 4 of 4
markusbarnes
in reply to: BrianEkins

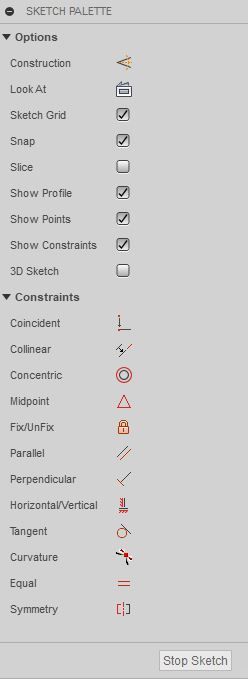

Thanks everyone for your help, but as shown in the screenshot below, I never had 3D sketch enabled.  I was thinking perhaps the move command may have also created a problem, but I couldn't replicate the problem.
