Hi all! I just started with Fusion 360 API and trying to figure out how to use it with 2D sketches...

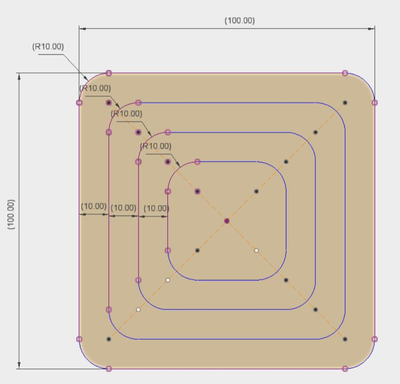

I'm trying to make a fully constrained square with a series of smaller squares inside and curved edges on each side of each square. I found a way to print out the squares using a for loop, but can't make them constrained and can't apply a fillet on its edges. Would really appreciate any advice. Thanks!
import adsk.core, adsk.fusion, traceback
user_params = {}
def createParam(design, name, value, units, comment):
userValue = adsk.core.ValueInput.createByString(value)
newParam = design.userParameters.add(name, userValue, units, comment)
return newParam
def run(context):
ui = None
try:
app = adsk.core.Application.get()
ui = app.userInterface
design = app.activeProduct
doc = app.documents.add(adsk.core.DocumentTypes.FusionDesignDocumentType)
# Get the root component of the active design.
rootComp = adsk.fusion.Component.cast(design.rootComponent)
core3Dpoint = adsk.core.Point3D.create;
# Create a new sketch on the xy plane.
sketches = rootComp.sketches;
xzPlane = rootComp.xZConstructionPlane;
firstS = sketches.add(xzPlane);
o = firstS.originPoint;
constraints = firstS.geometricConstraints;
lines = firstS.sketchCurves.sketchLines;
points = firstS.sketchPoints;
center = points.add(core3Dpoint(0,0,0));
constraints.addCoincident(o,center);
for i in range(1, 5):
lines.addCenterPointRectangle(core3Dpoint(0,0,0), core3Dpoint(i, i, 0));
constraints.addParallel()
user_params['g_width'] = createParam(design, 'g_width', '100', 'mm', '')
user_params['g_height'] = createParam(design, 'g_height', '100', 'mm', '')
center = adsk.core.Point3D.create(0, 5, 0)
addRect(sketches, rootComp.xYConstructionPlane, center, ['g_height', 'g_width'])
except:
if ui:
ui.messageBox('Failed. This code sucks, you know it and I know it:\n{}'.format(traceback.format_exc()))
