Importing components into the current document using the Fusion 360 API

bloudraak
Enthusiast
Enthusiast

I'm struggling to link newly created components into a new document, and need some help.



I have a script that creates breadboards based on some parameters, all in one go. The same script also generates the components for those breadboards. Examples include:

  • switching between metric and imperial measurements
  • the distance between mounting holes

The components and breadboards are all distinct and manufactured independently, so the script I wrote saves them into their own files.  I then create "configurations". One configuration may be where components a,b,c, and d need to be mounted, and another would be where a,b, e, f, and g need to be mounted. I can virtually inspect and arrange things and then proceed to get a quote, manufacture things for real-world testing or adjust the parameters, and rerun the script. Creating these configurations is, at best, time-consuming and error-prone when doing it manually.



I created a simplified script to reproduce the problem:



#Author-
#Description-
import time

import adsk.core, adsk.fusion, adsk.cam, traceback, math

def run(context):
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface
        project: adsk.core.DataProject = app.data.activeProject
        folder: adsk.core.DataFolder = project.rootFolder
        lib = app.materialLibraries.itemByName('Fusion 360 Material Library')
        pcb = lib.materials.itemByName('FR4')
        steel = lib.materials.itemByName('Steel')

        #
        # Component 1
        #
        width = 6
        depth = 8
        edge  = 1
        height = 0.166
        doc = app.documents.add(adsk.core.DocumentTypes.FusionDesignDocumentType)
        name = 'Component 1'
        design = doc.products[0]
        units_mgr = design.unitsManager
        units_mgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits
        root = design.rootComponent
        component = root.occurrences.addNewComponent(adsk.core.Matrix3D.create()).component
        component.name = name
        component.material = pcb
        sketch = component.sketches.add(component.xYConstructionPlane)
        sketch.name = component.name
        lines = sketch.sketchCurves.sketchLines
        p1 = adsk.core.Point3D.create(0, 0, 0)
        p2 = adsk.core.Point3D.create(width, depth, 0)
        rectangle = lines.addTwoPointRectangle(p1, p2)
        sketch.geometricConstraints.addHorizontal(rectangle.item(0))
        sketch.geometricConstraints.addHorizontal(rectangle.item(2))
        sketch.geometricConstraints.addVertical(rectangle.item(1))
        sketch.geometricConstraints.addVertical(rectangle.item(3))
        sketch.sketchDimensions.addDistanceDimension(rectangle.item(0).startSketchPoint,
                                                    rectangle.item(0).endSketchPoint,
                                                    adsk.fusion.DimensionOrientations.HorizontalDimensionOrientation,
                                                    adsk.core.Point3D.create(width / 2, -1))
        sketch.sketchDimensions.addDistanceDimension(rectangle.item(3).startSketchPoint,
                                                    rectangle.item(3).endSketchPoint,
                                                    adsk.fusion.DimensionOrientations.VerticalDimensionOrientation,
                                                    adsk.core.Point3D.create(-1, depth / 2))

        extrudes = component.features.extrudeFeatures
        prof = sketch.profiles.item(0)

        distance = adsk.core.ValueInput.createByString("1.6 mm")
        extrude = extrudes.addSimple(prof, distance, adsk.fusion.FeatureOperations.NewBodyFeatureOperation)
        body = extrude.bodies.item(0)
        body.name = sketch.name
        face = body.faces.item(4)  # Top Face
        sketch = component.sketches.addWithoutEdges(face)
        sketch.name = 'Mounting'

        offset_sketch_points = sketch.sketchPoints
        point1 = offset_sketch_points.add(adsk.core.Point3D.create(edge, edge, 0))
        point2 = offset_sketch_points.add(adsk.core.Point3D.create(edge, depth - edge, 0))
        point3 = offset_sketch_points.add(adsk.core.Point3D.create(width - edge, edge, 0))
        point4 = offset_sketch_points.add(adsk.core.Point3D.create(width - edge, depth - edge, 0))

        points = adsk.core.ObjectCollection.create()
        points.add(point1)
        points.add(point2)
        points.add(point3)
        points.add(point4)

        holes = component.features.holeFeatures
        fastener_diameter = '3 mm'
        hole = holes.createSimpleInput(adsk.core.ValueInput.createByString(fastener_diameter))
        hole.setPositionBySketchPoints(points)
        hole.setDistanceExtent(distance)
        hole = holes.add(hole)

        doc.saveAs(name, folder, '', '')
        doc.close(False)

        #
        # Component 2
        #
        width = 30
        depth = 64
        space_x = 4
        space_y = 6
        edge = 2
        doc = app.documents.add(adsk.core.DocumentTypes.FusionDesignDocumentType)
        name = 'Breadboard 1'
        design = doc.products[0]
        units_mgr = design.unitsManager
        units_mgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits
        root = design.rootComponent
        component = root.occurrences.addNewComponent(adsk.core.Matrix3D.create()).component
        component.name = name
        component.material = steel
        sketch = component.sketches.add(component.xYConstructionPlane)
        sketch.name = component.name
        lines = sketch.sketchCurves.sketchLines
        p1 = adsk.core.Point3D.create(0, 0, 0)
        p2 = adsk.core.Point3D.create(width, depth, 0)
        rectangle = lines.addTwoPointRectangle(p1, p2)
        sketch.geometricConstraints.addHorizontal(rectangle.item(0))
        sketch.geometricConstraints.addHorizontal(rectangle.item(2))
        sketch.geometricConstraints.addVertical(rectangle.item(1))
        sketch.geometricConstraints.addVertical(rectangle.item(3))
        sketch.sketchDimensions.addDistanceDimension(rectangle.item(0).startSketchPoint,
                                                    rectangle.item(0).endSketchPoint,
                                                    adsk.fusion.DimensionOrientations.HorizontalDimensionOrientation,
                                                    adsk.core.Point3D.create(width / 2, -1))
        sketch.sketchDimensions.addDistanceDimension(rectangle.item(3).startSketchPoint,
                                                    rectangle.item(3).endSketchPoint,
                                                    adsk.fusion.DimensionOrientations.VerticalDimensionOrientation,
                                                    adsk.core.Point3D.create(-1, depth / 2))

        extrudes = component.features.extrudeFeatures
        prof = sketch.profiles.item(0)
        distance = adsk.core.ValueInput.createByString("1.66 mm")
        extrude = extrudes.addSimple(prof, distance, adsk.fusion.FeatureOperations.NewBodyFeatureOperation)
        body = extrude.bodies.item(0)
        body.name = sketch.name

        face = body.faces.item(4)  # Top Face
        sketch = component.sketches.addWithoutEdges(face)
        sketch.name = 'Mounting'

        points = adsk.core.ObjectCollection.create()
        offset_sketch_points = sketch.sketchPoints

        count_x = math.ceil((width - 2 * edge) / space_x)
        padding_x = (width - (count_x - 1) * space_x)/2
        count_y = math.ceil((depth - 2 * edge) / space_y)
        padding_y = (depth - (count_y - 1) * space_y)/2
        for w in range(0, count_x):
            for d in range(0, count_y):
                x = w * space_x + padding_x
                y = d * space_y + padding_y
                p = offset_sketch_points.add(adsk.core.Point3D.create(x, y, 0))
                points.add(p)

        holes = component.features.holeFeatures
        fastener_diameter = '3 mm'
        hole = holes.createSimpleInput(adsk.core.ValueInput.createByString(fastener_diameter))
        hole.setPositionBySketchPoints(points)
        hole.setDistanceExtent(distance)
        hole = holes.add(hole)
        doc.saveAs(name, folder, '', '')
        doc.close(False)

        doc = app.documents.add(adsk.core.DocumentTypes.FusionDesignDocumentType)
        design = doc.products[0]
        units_mgr = design.unitsManager
        units_mgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits
        root = design.rootComponent
        doc.saveAs("Config 1", folder, '', '')

        # TODO Import components

        doc.save()
        doc.close(False)

    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))

At the TODO statement, I added the following

        # TODO Import components
        dataFiles = project.rootFolder.dataFiles
        for file in dataFiles:
            if file.name == 'Component 1' or file.name == 'Breadboard 1':
                occs = root.occurrences
                occs.addByInsert(file, adsk.core.Matrix3D.create(), True)

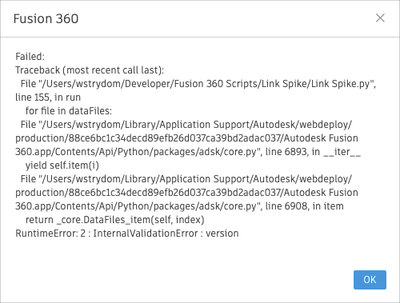

which gave me this error


I can't find a good example of how to insert a component from a file. I suspect that both "Breadboard 1" and "Component 1" may not be available to be inserted into "Config 1".



I found that I could just run three different scripts and wait in-between, but that isn't ideal when there are tens or hundreds of them. I'd rather run the script and spend time with our daughter, or attend to other important matters.



Software Engineer
https://wernerstrydom.com
0 Likes
1,050 Views
2 Replies
Replies (2)
Message 2 of 3

kandennti
Mentor
Mentor

Hi @bloudraak .



Fusion360 itself has not been updated yet, but the documentation What's New has been updated.

https://help.autodesk.com/view/fusion360/ENU/?guid=GUID-36B1FFB5-5291-4532-8F11-90E912769B34



"2.Knowing When a DataFile is Completely Saved"
will probably solve this, but I won't know until I try it.

Message 3 of 3

bloudraak
Enthusiast
Enthusiast

A solution was posted on how to wait for the file upload to complete https://forums.autodesk.com/t5/fusion-360-api-and-scripts/runtime-error-trying-to-determine-whether-...

Software Engineer
https://wernerstrydom.com
