Accessing a Path Programatically for creation of plane along path

Accessing a Path Programatically for creation of plane along path

Anonymous
Not applicable
374 Views
0 Replies
Message 1 of 1

Accessing a Path Programatically for creation of plane along path

Anonymous
Not applicable

What I have currently done:

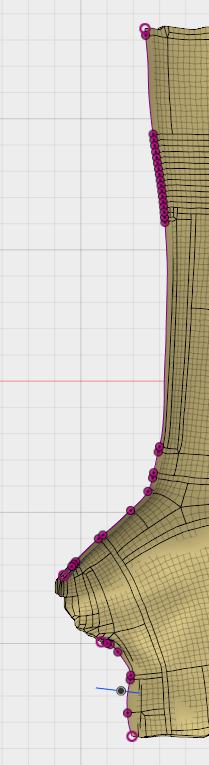

I have created an intersection between a Brep body and the XY plane (with the IntersectwithSketchPlane method), producing curves made up of fixed spline segments (picture attached).



What I want to do:

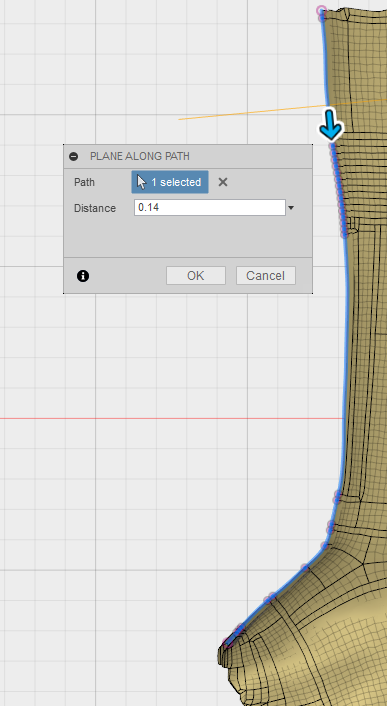

I want to construct planes tangent to each of these three intersections. I can do this in the UI; when I click "construct plane along path", the entire path is highlighted (pic attached), not just the individual fixed spline segments. How can I access this entire length programatically? Currently, all the individual lengths are saved as SketchFixedSpline Objects in a SketchEntity.



What I need:

I want to access all the fixed splines that are connected together as one spline, so that I can use it as a path in my next step. There hopefully should be an easier way than brute force reconstructing the spline using the StartPoint and EndPoint attributes of the SketchFixedSpline object. I have also attached my code.QuestionPic6.PNGQuestionPic7.PNG

#Author-
#Description-

import adsk.core, adsk.fusion, adsk.cam, traceback

def run(context):
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface
        design = app.activeProduct
        ui.messageBox("Select Intersecting Body")
        selectedbody = ui.selectEntity("Select Intersecting Body", "Bodies")



        rootComp = design.rootComponent
        sketches = rootComp.sketches
        xZPlane = rootComp.xZConstructionPlane
        sketch1 = sketches.add(xZPlane)
        entities = []
        entities.append(selectedbody.entity)
        print(type(entities))
        intersection = sketch1.intersectWithSketchPlane(entities)
