Hello Pendean,

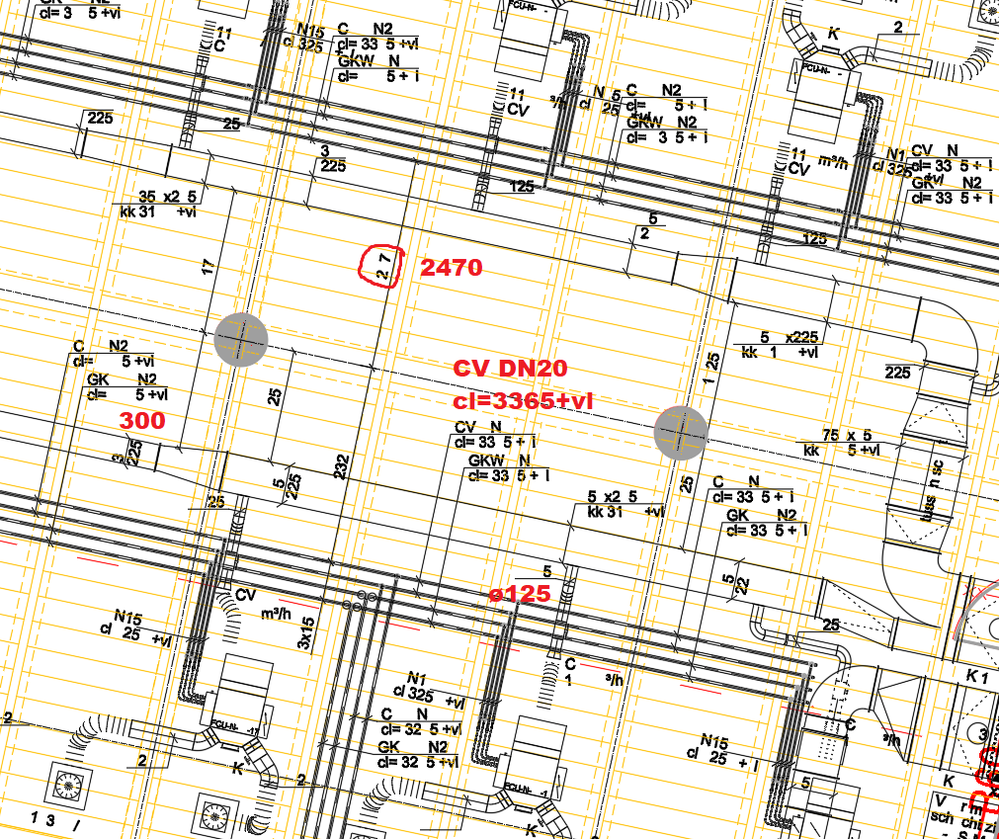

The lweight and annotative scale are different at my first attached screenshots, that isn't a big problem, but in the screenshot below (after plot) you can see the problem I mean. Instead a aligned dimension with the measurement of 2470mm, you can only see the 2 and the 7. If you look to the other aligned dimension at the left, you'll see "17", these are the first 2 numbers of the measurement, not the first and third number like with 2470.
It's the same at the pipedimensions;
You must see CV (or GKW) DN20 above the line and cl=3365+vl beneath. But nowhere you can read this complete.

That is the biggest problem.
The missing letters/numbers are visible in the plot preview, but not after I plot the drawing in PDF or paper.

after plot.png
