auto cad LT not printing or previewing full range of hatching

Anonymous · ‎03-15-2021

Hi

A first timer. Im running a 2018 Autocad LT on a Mac system.

When 'previewing' plots or saving to 'pdf' four colours out of 19 hatch colours are showing as white, even though the drawing has the full range.

Hatching is set to 'true colour'.

The file is 1.9MB & the system 16GB ram and the processor os 3.4Ghz, so I suspect its not a system overload.

Cheers

pendean · ‎03-15-2021

Show us a screenshot: lets see what you see, also post a screenshot of your PLOT or PAGESETUP too.

Anonymous · ‎03-15-2021

A preview screen shot

A drawing screen shot

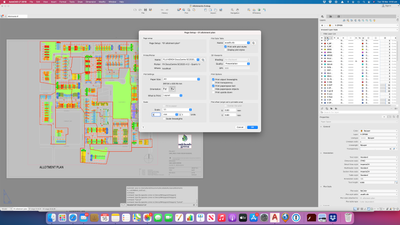

Page setup

No doubt you hear this a lot, but its driving me crazy.
Thanking you in advance

maxim_k · ‎03-15-2021

Hi @Anonymous ,

Sorry, but you forgot to attach screenshots...

Anyway, it will be better to have your drawing at hand along with plot style table file if any. You can use Package Drawing to create an archive with all necessary info.

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

Anonymous · ‎03-16-2021

Apologies.
I sent off these images this morning, but……..
So I'm trying again.
Cheers
Davo

Plot style

The pdf

The drawing

maxim_k · ‎03-16-2021

@Anonymous
Sorry, no attachments again.
Are you replying in browser?
You cannot attach files if you reply with email.

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

Anonymous · ‎03-16-2021

thank you. yes was using email.

trying this method.

lets see

maxim_k · ‎03-16-2021

Still no attachments....

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

Anonymous · ‎03-16-2021

preview & pdf output

plot styles

drawing

Sorry, its all new

maxim_k · ‎03-16-2021

And what about the DWG file itself?
Can you share it?

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

maxim_k · ‎03-16-2021

I also noticed that you are using 2018 version on Big Sur, but this version is not supported officially on this new macOS. At the same time, I think that the problem is not related to incompatibility.

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

Anonymous · ‎03-16-2021

Hi

The cad files

ctb files will not upload for some reason.

maxim_k · ‎03-16-2021

>>>The cad files ctb files will not upload for some reason.
In AutoCAD - save your drawing, from menu File select Package drawing, in Package settings ensure that package type is Compressed file (.zip), create ZIP archive with "Package Files" button.
Attach resulting ZIP archive here.

Do you find the posts helpful? "LIKE" these posts!
Have your question been answered successfully? Click 'ACCEPT SOLUTION' button.

Maxim Kanaev
Architect
MARSS

MacACAD | Linkedin

Etiquette and Ground Rules of Autodesk Community

Anonymous · ‎03-16-2021

the zip file

maxim_k · ‎03-16-2021

Hatches and lines that do not show in PDF are on non printable Layers.
For example, on Layer "h OP48A":

That is why you cannot see them in PDF.

You need to turn off "Not to print option" for these Layers in the Layers palette.
