VBA code for replacing sketch symbols on the drawing

Hi Guys,

I need help with the code (complete beginner :-)) PLEASE.

I got a code already (attached) from the friend that changes drawing to "for construction": changes rev to 0, fills "issued for construction" in revision table and updates dates etc.

It is possible to add to it a code that:

- replace symbol that is currently on the first page only on the drawing named 'A3 For Approval' to

- symbol named 'A3 For Construction'?





You help would be greatly appreciated.

Thank you very much Paul





Tony_Yates
in reply to: Anonymous

Hi Paul,



Try this:

'Dim oDoc As DrawingDocument
Dim oDoc = ThisApplication.ActiveDocument


Dim oSheet As Sheet

For Each oSheet In oDoc.Sheets

     Dim oSketchedSymbolDef As SketchedSymbol
    For Each oSketchedSymbolDef In oSheet.SketchedSymbols
     If oSketchedSymbolDef.Name = "A3 For Approval" Then
        oSketchedSymbolDef.Delete 'It will delete all the sketched symbols
     End If
   Next

Next

' This assumes a drawing document is active.
Dim oDrawDoc As DrawingDocument = ThisDrawing.Document


' Obtain a reference to the desired sketched symbol definition.
Dim oSketchedSymbolDef As SketchedSymbolDefinition _
       = oDrawDoc.SketchedSymbolDefinitions.Item("A3 For Construction")

Dim oSheet As Sheet = oDrawDoc.ActiveSheet

'create insertion point, coordinates - in cm !
Dim oTG As TransientGeometry = ThisApplication.TransientGeometry
Dim oInsertionPoint As Point2d = oTG.CreatePoint2d(40.195195, 10.5)


Dim oSketchedSymbol As SketchedSymbol _
       = oSheet.SketchedSymbols.Add( _
             oSketchedSymbolDef, _
             oInsertionPoint, _
             0, 1, Nothing)



change the insertion point number to position where you like it.

Also noticed your stamp name is spelt incorrect. "A3 For Constrcuction" so correct that first.



Anonymous
in reply to: Tony_Yates

Thank you Tony,

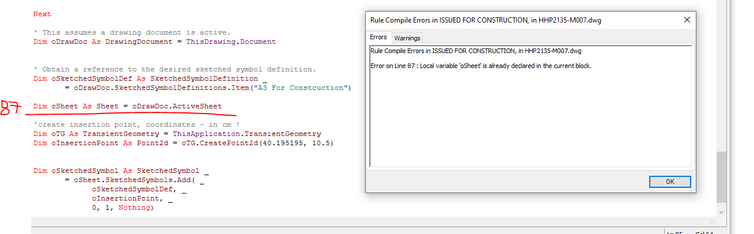

I did try and getting this:




Tony_Yates
in reply to: Anonymous

Hi Paul,

Sorry I just added two rules together.

Try This:

Dim oDoc = ThisApplication.ActiveDocument


Dim oSheet As Sheet

For Each oSheet In oDoc.Sheets

     Dim oSketchedSymbolDef As SketchedSymbol
    For Each oSketchedSymbolDef In oSheet.SketchedSymbols
     If oSketchedSymbolDef.Name = "A3 For Approval" Then
        oSketchedSymbolDef.Delete 'It will delete all the sketched symbols
     End If
   Next

Next



' Obtain a reference to the desired sketched symbol definition.
Dim oSketchedSymbolDef1 As SketchedSymbolDefinition _
       = oDoc.SketchedSymbolDefinitions.Item("A3 For Construction")



'create insertion point, coordinates - in cm !
Dim oTG As TransientGeometry = ThisApplication.TransientGeometry
Dim oInsertionPoint As Point2d = oTG.CreatePoint2d(40.195195, 10.5)


Dim oSketchedSymbol As SketchedSymbol _
       = oSheet.SketchedSymbols.Add( _
             oSketchedSymbolDef1, _
             oInsertionPoint, _
             0, 1, Nothing)


Anonymous
in reply to: Tony_Yates

Hi Tony,

Thank you, We are almost there :-), it deletes 'for approval' at the first page BUT places 'for construction' at the last page only. It works perfectly when IDW has only one sheet.




Tony_Yates
in reply to: Anonymous

Hi Paul,



changed to active sheet



Dim oDoc = ThisApplication.ActiveDocument


Dim oSheet As Sheet

For Each oSheet In oDoc.Sheets

     Dim oSketchedSymbolDef As SketchedSymbol
    For Each oSketchedSymbolDef In oSheet.SketchedSymbols
     If oSketchedSymbolDef.Name = "A3 For Approval" Then
        oSketchedSymbolDef.Delete 'It will delete all the sketched symbols
     End If
   Next

Next



' Obtain a reference to the desired sketched symbol definition.
Dim oSketchedSymbolDef1 As SketchedSymbolDefinition _
       = oDoc.SketchedSymbolDefinitions.Item("A3 For Construction")



'create insertion point, coordinates - in cm !
Dim oTG As TransientGeometry = ThisApplication.TransientGeometry
Dim oInsertionPoint As Point2d = oTG.CreatePoint2d(40.195195, 10.5)


Dim oSketchedSymbol As SketchedSymbol _
       = oDoc.ActiveSheet.SketchedSymbols.Add( _
             oSketchedSymbolDef1, _
             oInsertionPoint, _
             0, 1, Nothing)
Anonymous
in reply to: Tony_Yates

Thank you VERY MUCH for help Tony, it works perfectly, It will save me hips of time, have a nice day :slightly_smiling_face:
