UR5e robot simulation

[manikantaravi22]

[ FlexSim 23.0.11 ]

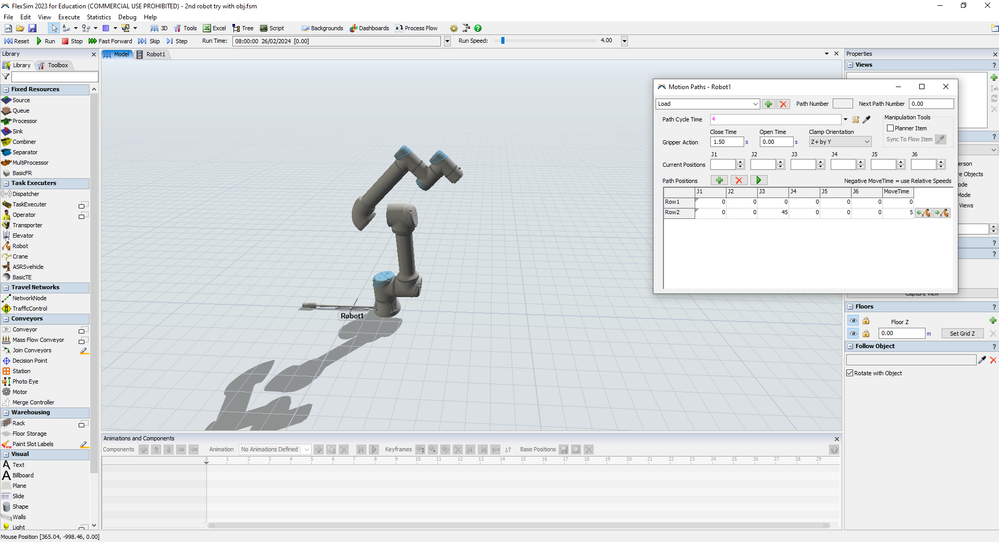

Hi I am trying to simulate UR5e robot in flexsim by using animation editor, I replaced the joints of original flexsim robot model to UR5e one as you can see in the picture.

But I am facing the problem with the rotation of joints, as robot's J2, J3, J5 are not moving as intended

Please help me so that the rotation of the flexsim robot can mimic UR5e robot. I am attaching Flexsim file for your reference as well. 2nd robot try with obj.fsm

[jason_lightfoot_adsk · Accepted solution]

Please search this site for workarounds in animating this robot. Since it's joint configurations don't match those of the default robot in FlexSim I'm pretty sure this cannot be 'modelled' in full at the moment.

[manikantaravi22]

Hi Jason, which site, can you provide me a link? is it possible to change the rotation of the axis using any settings in animation editor. eg for joint 1 I want to rotate around y axis.

[jason_lightfoot_adsk]

site:answers.flexsim.com UR5

[Jeanette_Fullmer]

Hi @Manikanta, was Jason Lightfoot's answer helpful? If so, please click the "Accept" button at the bottom of their answer. Or if you still have questions, add a comment and we'll continue the conversation.

If we haven't heard back from you within 3 business days we'll auto-accept an answer, but you can always comment back to reopen your question.
