Pie chart percentage

[Clara1]

[ FlexSim 24.0.2 ]

Hello,

How can I change the pie chart percentage from 100% to the processing state percentage?

[m_rosadini · Accepted solution]

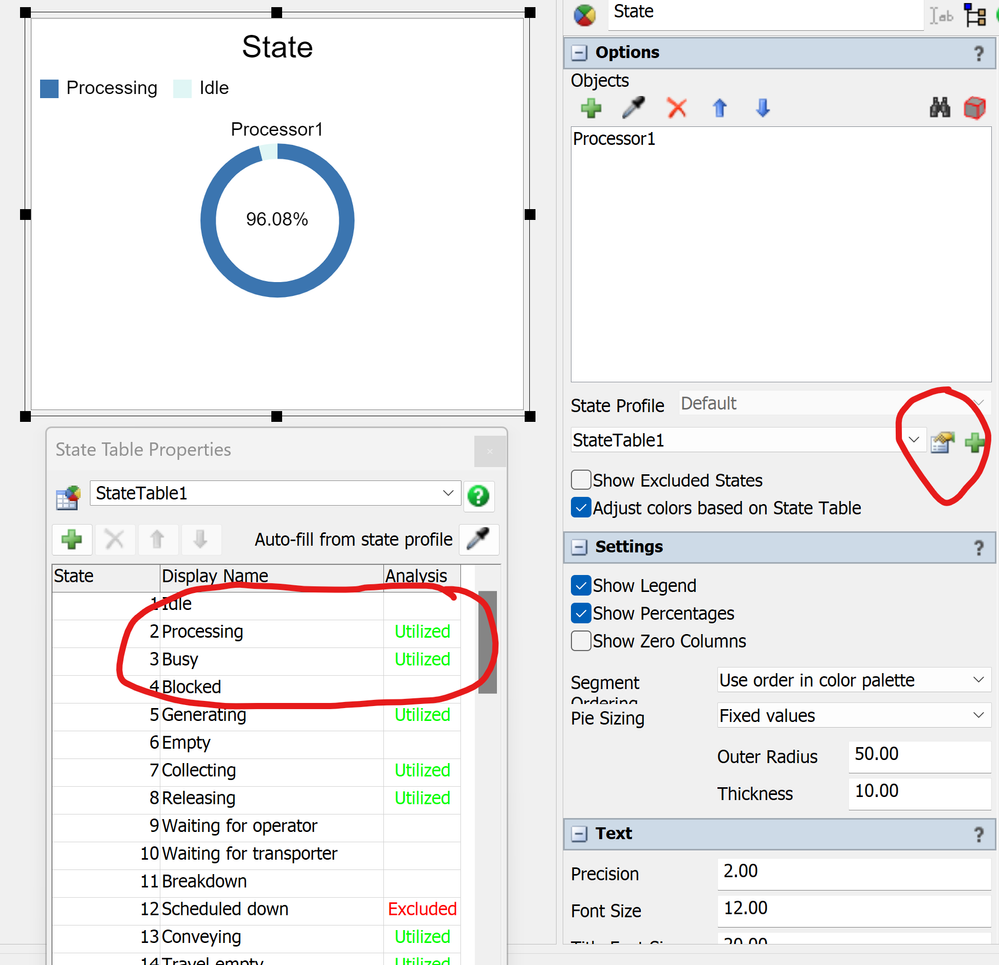

Hi, Clara. The states that are considered for the percentage are defined in the StateTable. You can modify them:

In your graph, the cells for the states Blocked and breakdwon should be blank so that they are not considered in the percentage.

[moehlmann_fe]

The Pie Chart always treats the sum of all shown values as 100%. For example the data behind the state chart is actually just the raw time spent in each state which gets then converted to a percentage.

You can see this by unchecking the "Show Percentages" option in the chart's properties.

So to change the 'base', create a state table that excludes any state you do not want to see represented in the chart. (By default, "Off Shift" and "Scheduled Down" are ignored, for example). The remaining states will be counted as 100%.

[Clara1]

The graphs always show 100% and I need them to show me the percentage of time they are "processing"

[Clara1]

It works perfectly, thanks!!

[Jeanette_Fullmer]

Hello @Clara,

In the state chart you mark the utilized option for the ones you want to contribute to the percentage.
