Property Set Data : Fetching the Inverts at the beggining and ending of a pipe with 3 decimals, how ?

[cyberflow]

Hi all,

I've been trying to make this work with 3 digits but it seems not to be working by adding a round() into it but the information contains only 2 decimals ...

How can we format this line so it outputs 3 decimals ?

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(1))

FYI here's the VB scripts :

Property set data VB script for Inlet Invert (Return 2 decimals) :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.5")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.5")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(0))
RESULT = round(spos(2),3)


Property set data for Oulet Invert (Return 2 decimals) :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.5")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.5")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(1))
RESULT = spos(2)

[cyberflow]

I just noticed something :

The code in the property set data sends out incorrect inverts :

The correct inverts :

The inverts returned from the property set data VB Scripts :

Is it normal ?

[lim.wendy · Accepted solution]

Hi Frank,

Thank you for submitting your question in our discussion forums.

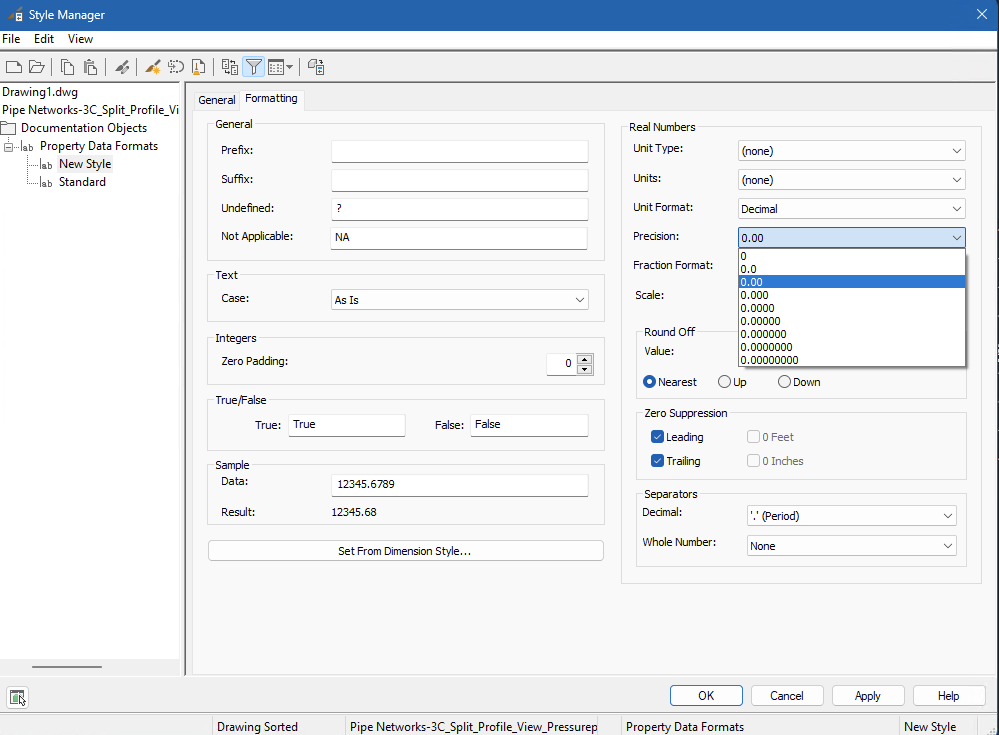

Have you tried adjusting the precision from the Property Data Style Manager?



Please let us know if you require further assistance.

If the suggestions helped you, please hit the "Accept Solution" button, as it helps make the solution easier to find for others who might have the same issue. Knowing which topics are solved or not can also help our many users find the questions that still need to be answered. It’s also a great way to say thank you and give recognition to whoever helped you.

[cyberflow]

Hi @lim.wendy  !

Thx for answering !

That seems pretty neat but i wonder why it doesn't give the correct invert ?

RadierDebut = Start Invert
RadierFin = End Invert

I feel like it's giving the centerline Z of the vertice ?

[cyberflow]

Start invert VBscript :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.6")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.6")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(0))
RESULT = spos(2)

End invert VBscript :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.6")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.6")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(1))
RESULT = spos(2)

[Jeff_M · Accepted solution]

---

@cyberflow wrote:

I feel like it's giving the centerline Z of the vertice ?

---

It is. You will need to get the InnerHeight and subtract 1/2 of that from the Z obtained.

[cyberflow · Accepted solution]

Hey hi @Jeff_M
This did work :


End Invert :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.6")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.6")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(0))
RESULT = FormatNumber(spos(2) - (obj.InnerHeight / 2), 3)

Start Invert :

RESULT = "--"
On Error Resume Next
Set oApp = GetObject(, "AutoCAD.Application")
Set oCivilApp = oApp.GetInterfaceObject("AeccXUiPipe.AeccPipeApplication.13.6")
Set aec = oApp.GetInterfaceObject("AecX.AecBaseApplication.8.6")
aec.Init oApp
Set obj = oCivilApp.ActiveDocument.HandleToObject("[Handle]")

spos = aec.ActiveDocument.Utility.ConvertToVariantArray(obj.PointAtParam(1))
RESULT = FormatNumber(spos(2) - (obj.InnerHeight / 2), 3)

Thanx again folks to helping someone out - I let the code here for someone else to use in the futur.


Usefull link :
http://docs.autodesk.com/CIV3D/2013/ENU/API_Reference_Guide/html/73fd1950-ee31-00b8-4872-c3f328ea133...
