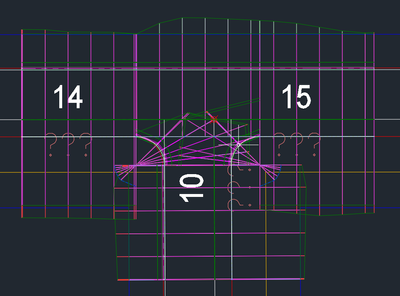

Hello, i am very new at Civil3D, i am having some issues while trying to generate a intersection. My corridor does not seem to target correctly in the curb regions as you can see in the images attached.
I have attached the file i'm using to play with this intersection.
Thank you in advance for the help!
Hi @vini070822, I saw your file, and there are many problems:
1. The curb-return assemblies target the terrain surface and generate daylights at the intersection. The lane that targets the edge-of-pavement of the main road should not have any daylight. Adjust these subassemblies.
2. When you approach the curb-return, your 6m sidewalk should have another configuration. It collisions with the sidewalk of the main road because they both don't fit in the same place. A target that controls how the width of the sidewalk changes would be a good idea.
3. You have bowties at the curb-returns.
I hope this helps. Best regards!
Camilo Fernández
Civil engineer | Specialist in design, construction, and maintenance of roadways
