I prepare a drawing in Model space (a subdivision with lots) and when I go to Paper space the drawing is already there but unreadable due to scaling problems.

A) I don't understand why the Model space drawing exists in Paper space when I have created a Viewport and

B) I can't figure out how to manipulate the scale in the Viewport to make the drawing readable.

[JimJonesPELS]

I prepare a drawing in Model space (a subdivision with lots) and when I go to Paper space the drawing is already there but unreadable due to scaling problems.

A) I don't understand why the Model space drawing exists in Paper space when I have created a Viewport and

B) I can't figure out how to manipulate the scale in the Viewport to make the drawing readable.

[Wojtek_Garczewski]

Hi @JimJonesPELS

You may want to see below article:

About Scaling Views in Layout Viewports
To Modify the Scale of a Layout Viewport

and this tutorial:
AutoCAD Video of the Month: Introduction to Layouts and Viewports

Thanks,
Wojtek

[AllenJessup]

---

@JimJonesPELS wrote:

A) I don't understand why the Model space drawing exists in Paper space when I have created a Viewport

Paper Space of course represents the paper you'll be plotting. When you create a Viewport it's like cutting a hole in the paper that you can see your Model Space through. The scale that the Model Space shows at in the Viewport is a property of that Viewport. I'm sure the links that @Wojtek_Garczewski will explain how to set the scale and orient the Viewport.

[JimJonesPELS]

Wojtek,

Thank you for the response. Here’ what’s going on:


1. I create a single-family subdivision using Parcels at a Model scale of 1” = 40”
2. I click on the Layout tab and the subdivision shows up (that in itself I don’t understand) that I have done nothing to create
3. I click on the triangle and change the Paper scale to 1” = 10’ for the 1:4 ratio described in “About Scaling Views in Layout Viewports” and the drawing explodes to a size that nothing is readable.

So, where am I going wrong?

Thanks,
Jim

[AllenJessup]

1. I create a single-family subdivision using Parcels at a Model scale of 1” = 40”

What do you mean by creating it at 1"=40'?  Are you talking about the Annotation Scale? Because Model Space is always 1:1

2. I click on the Layout tab and the subdivision shows up (that in itself I don’t understand) that I have done nothing to create

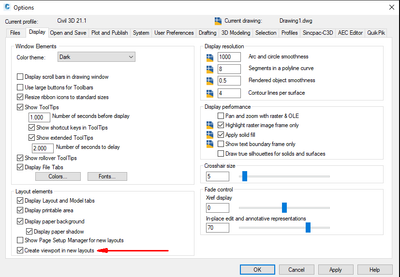

That's controlled by a setting in Options. If that's checked. When you create a layout there will be Viewport created. Also there will be Viewports in the default layouts.

3. I click on the triangle and change the Paper scale to 1” = 10’ for the 1:4 ratio described in “About Scaling Views in Layout Viewports” and the drawing explodes to a size that nothing is readable.

I haven't read the “About Scaling Views in Layout Viewports”. But if you had 1"=40' in Model Space. Wouldn't you want to plot at that scale. I'm not saying you couldn't plot at a different scale. But it's more likely to be at the Annotation Scale.

If possible. Post your drawing. That way we can see what's happening.

[JimJonesPELS]

Hi xxx-xxxxxxxx,


AllenJessup (Mentor) posted a new reply in Civil 3D Forum on 04-28-2021 04:59 AM .


Re: Layout Viewports



1. I create a single-family subdivision using Parcels at a Model scale of 1” = 40”



What do you mean by creating it at 1"=40'? Are you talking about the Annotation Scale? Because Model Space is always 1:1



I mean that the scale on the Status Bar is set to 1” = 40’. I have noticed that scale doesn’t change when I zoom so presumably that’s because the drawing is always 1:1. I didn’t know that. That’s good to know but It doesn’t help really with the immediate problem.



Question – What does the 1” = 40’ on the Status Bar mean?

2. I click on the Layout tab and the subdivision shows up (that in itself I don’t understand) that I have done nothing to create



That's controlled by a setting in Options. If that's checked. When you create a layout there will be Viewport created. Also there will be Viewports in the default layouts.



Thank you.


3. I click on the triangle and change the Paper scale to 1” = 10’ for the 1:4 ratio described in “About Scaling Views in Layout Viewports” and the drawing explodes to a size that nothing is readable.



I haven't read the “About Scaling Views in Layout Viewports”. But if you had 1"=40' in Model Space. Wouldn't you want to plot at that scale. I'm not saying you couldn't plot at a different scale. But it's more likely to be at the Annotation Scale.



Yes, I set the scale at 1” = 40’ because I intend to plot at the 40’ scale. I’m only interested in creating and plotting drawings. At the moment I’m unable to do that.



I have attached the drawing.



Thanks for your help.

Jim



If possible. Post your drawing. That way we can see what's happening.

Reply | Accept as solution | Like this post


Note: When you reply by email, your signature file if you set one up in your email client is displayed in the thread. If you don't want your signature file to appear in the thread, please remove it before replying.

[AllenJessup]

I don't see the drawing attached.

[wfberry]

Do you know how to make a viewport in a Layout?  I think that is where to start.

Bill

[JimJonesPELS]

Let me know if you get this.

[JimJonesPELS]

The viewport is created automatically from the model.

[AllenJessup]

---

@JimJonesPELS wrote:
Let me know if you get this.

---

If you're talking about the drawing. No.

[JimJonesPELS]

I hit reply at the bottom of your email and attach the C3D drawing as a document but, you don’t see it.

Is there some other protocol?

[AllenJessup]

The emails are from Autodesk. Replies to them go nowhere. Attach the file in the Forum.

[Joe-Bouza]

Spider senses are tingling...

Is your drawing in feet and inches?

[JimJonesPELS]

Yes.

[JimJonesPELS]

How do I find this email thread in the Forum?

[Joe-Bouza]

That is your problem.

Civil3d wants decimal

[JimJonesPELS]

How about this?

I didn't understand about the Forum.

[AllenJessup]

That's it. I may not have time to review it for a couple of hours. Someone might solve it before then. If not. I'll bet back to you if I can figure out your issue.
