Civil 3D - SECTION AND CROSS SECTION

[raymondkingsly]

JUST EAGER TO KNOW WHAT IS THE DIFFERENCE BETWEEN SECTION AND CROSSSECTION IN MODIFY SECTION TAB, I HAVE ATTACHED THE SCREEN SHOT HERE

This post has been edited due to: @lauri_barnhart added the product to the title to help more community members find this topic.

[ecfernandez]

Hi @raymondkingsly, could you please show us where you are clicking before you get that prompt?

[raymondkingsly]

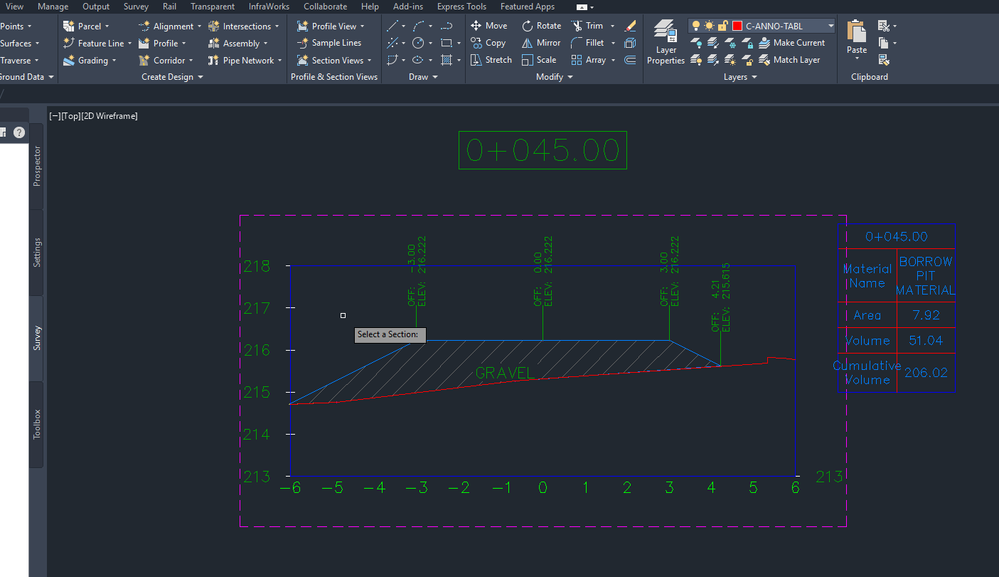

 Hi Sir , Here I have attached the screen shot , its section properties , while click  the section properties , its drop down 2 options  they are - 1 . Section properties , 2. edit section style .if i click  first one 1. its prompt for selection section , if i click the second one now it prompt select cross section . what is the difference sir .

[ecfernandez · Accepted solution]

Hi @raymondkingsly, whenever you are working with cross sections you'll need to know there are two main let's say classifications: The "section", and the "section view". The section view is just the grid and offset/elevation labels. However, the cross section or section, is every object that shows up on a section view, say a surface section. From those options you can modify individually the properties/style of surface sections. So, no matter the prompt, the software is asking you to select a surface section. The term section and cross section are used interchangeably

There are also corridor sections which you can only modify their properties using these same commands you are enquiring about.

If you want to learn more about this topic visit the following link: About Sections

I hope this helps. Best regards,

[raymondkingsly]

Hi sir ,   the concept is clear now _ (So, no matter the prompt, the software is asking you to select a surface section. The term section and cross section are used interchangeably)noted this points and remaning brief clear elloborations .

Thank you so much .
