F1 Front Wing - How to visualize Air Flow? [Help]

F1 Front Wing - How to visualize Air Flow? [Help]

Anonymous
Not applicable
1,329 Views
14 Replies
Message 1 of 15

F1 Front Wing - How to visualize Air Flow? [Help]

Anonymous
Not applicable

Hi,

I'm 18 years old and I'm new in CFD, I'm doing a school work.

I downloaded this front wing 3D model (.stp) but I don't know how to visualize his air flow.

Can someone help me?

Thanks.





Desktop Screenshot 2018.06.04 - 17.01.46.45.png

0 Likes
Accepted solutions (2)
1,330 Views
14 Replies
Replies (14)
Message 2 of 15

frederic.gaillard.7
Advisor
Advisor

Hello,

Did you run a simulation ?

you can't visualize if you don't start a simulation, in your model don't have any material assigned. This make me think that you didn't solve anything. To do so you should :
1. assign material on every part of your model

2. assign boundary condition on surface of your model

3. assign a mesh (i will say start with autosize)

4. specify the solver setting  and then solve.

Fred

0 Likes
Message 3 of 15

Anonymous
Not applicable

I tried but I don't think that works.

Graph and table are empty and the results show 0m/s velocity.

I think a made a mistake with boundary condition, can you please explain me how to assing it?

Thank you so much.



Riccardo



 (Sorry for italian)

Desktop Screenshot 2018.06.04 - 20.56.48.07.png





0 Likes
Message 4 of 15

matt.bemis
Alumni
Alumni

Hi @Anonymous,



You don't have a bounding box. You have no air volume around the solid. You need to add a bounding box of air by drawing it in CAD.



I suggest going through the tutorial models so you have a better understanding of how to use the software.



Thanks,



Matt Bemis

Technical Support Specialist

Message 5 of 15

frederic.gaillard.7
Advisor
Advisor
Accepted solution

Hello,

you need to define an air volume around your front wing. What you looking for is probably the velocity profile as well as the pressure distribution in the neighborhood of your wing.

1. go to geometry tool (strumenti geometrici)  and create an external volume (4 th tab from the left)

2. in ''materiali tab'' assign a material on your new volume. It's probably air that you need.

3. For the boudary condition what you need is a velocity and a pressure BC to simulate the air flow.

  1.  velocity should be ahead of your wing and pressure (P=0) should be downstream of you model.

Try this it should work.

fred









Message 6 of 15

Anonymous
Not applicable

Hi,

I created an air volume and assigned boundary conditions but it appears that the air flow is blocked outside the volume.

Any suggestion?



Riccardo

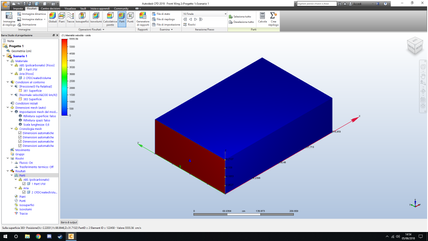

Desktop Screenshot 2018.06.05 - 14.54.44.59.pngCattura.JPG



0 Likes
Message 7 of 15

frederic.gaillard.7
Advisor
Advisor

what did you mean by '' the air flow is blocked outside the volume''  ?

can you share the cfz.file ?

une need to specify the right direction of the flow/velocity. it should enter in the box.





0 Likes
Message 8 of 15

Anonymous
Not applicable

Here is the attached file.

0 Likes
Message 9 of 15

frederic.gaillard.7
Advisor
Advisor

hello,

you attach the cfdst file.  i need the cfz file.

0 Likes
Message 10 of 15

Anonymous
Not applicable
0 Likes
Message 11 of 15

frederic.gaillard.7
Advisor
Advisor

i didn't find the CFZ file in the google doc.

Message 12 of 15

frederic.gaillard.7
Advisor
Advisor


Message 13 of 15

Anonymous
Not applicable
Just download it from the link
There is an errore with visualization but the file is correct
Message 14 of 15

frederic.gaillard.7
Advisor
Advisor
Accepted solution

Your setup look okay,

i still dont understand ''air flow is blocked outside the volume.'' but it may refer at the way you look at the result.

use the plane and ajust the velocity scaling and the color should be present.

However several point

1. Place your front wing in the center of the air volume

2. supress the mesh of your front wings



Message 15 of 15

Anonymous
Not applicable

Hello,

It finally works! Thank you so much for your patience!



Best Regards,

Riccardo.
