Creating automated threaded pipes with socket in between

[nurul]

Hi. I've added a pipe with threaded ends (THDF/THDM) in the spec, and socket with threaded ends (THDF/THDM) too.

However when i route it in 3D project, there are only pipes with gap, no socket in between. Any steps missing here? I only use default setting for project.

[uk96710]

Hi @nurul

I think the pipe you added in the spec was actually a Pipe Nipple I guess.

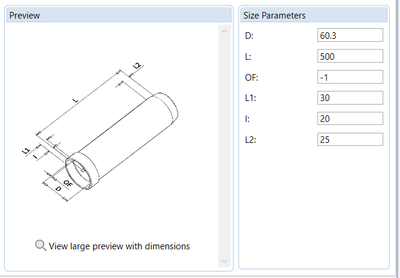

In Size Parameter modify I/L1/L2=0, Try using this I think this will help.

Let me know if it helps.

Regards

Umarfarukh

[km4504]

Set I, L1 & L2 to negative value.
