Horizontal construction line error

[Anonymous]

Dear community,

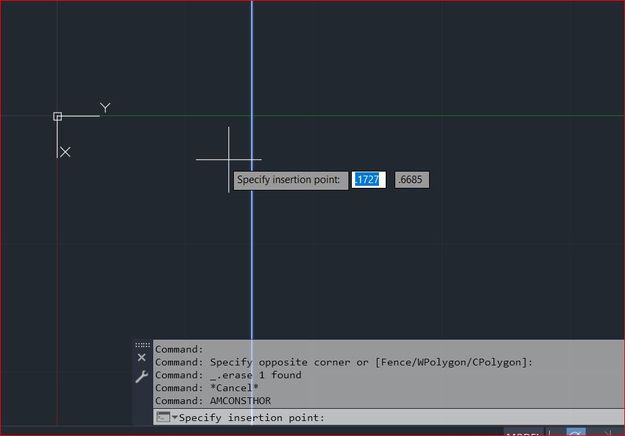

when I create a horizontal construction line (AMCONSTHOR), sometimes it starts creating a vertical one instead. It happens randomly and quite often. After AutoCAD Mechanical 2020 restart everything is OK again (for a certain time).

I have already observed this behavior in AutoCAD Mechanical 2018.

Is that related to a variable change?

Thanks in advance

[cheryl.buck · Accepted solution]

Hi @Anonymous,

The command AMCONSTHOR is based on drawing coordinates, rather than your view of it. If you rotate your views at all, the Horizontal construction line will display at a different rotation in relation to X and Y coordinates.

Please let us know if that helped.

You can use the Accept Solution button to mark any posts that provide the answer or solution.

Likes are always welcome.

All the best,

[Anonymous]

Hi @cheryl.buck ,

my ucs is constant. Thanks all the same!

[Anonymous]

Hi @cheryl.buck ,

I'm sorry, I got it wrong (also a description in the title) - can you change it?. It is a problem when creating a parallel construction line with a distance (AMCONSTPAR). I think, this error behavior is related to objects where the Hidden Edges function (AMSHIDE) in AutoCAD Mechanical was used. For some objects (see pictures) it is impossible to make a parallel construction line. It is switched always to a vertical auxiliary line.

 

.

    -------->

My DWG sample for testing purposes see attachement.

[cheryl.buck]

Hi @Anonymous,

I see you have reposted your question noting a different command, and have responded in that thread.

All the best,
