Why does everything appear thicker when using the Shade command?

3 REPLIES 3
SOLVED
Reply
Message 1 of 4
cipu_marinel_d3h
367 Views, 3 Replies

Why does everything appear thicker when using the Shade command?

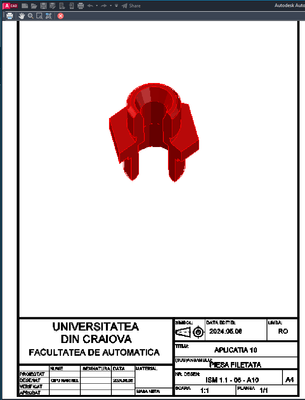

I need to print a .DWG and I have to use the shade command for a 3D model, however the final result looks very bad because of the thickness, here's what I'm getting:




When it should look just like this:


(that's just an example but as you can see everything is rendered just fine and clear)

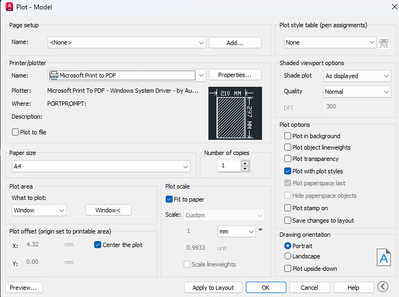

These are my print settings:


I'm new to AutoCAD and I still have to figure out a lot of things 😅
Thanks!

3 REPLIES 3
Message 2 of 4

To get the linework like the title block to plot nicely, all of that should be in Layout.

So I cut&paste all of that from Model into Layout.

Then I used the Mview command to create a Vport matching the window size of the title block

I also use PageSetup command to modify the Layout to use the following settings:

Dwg To Pdf.pc3, A4 size Paper, Plot Window area, Center offset, at Scale of 1:1, Portrait orientation


This way the linework looks right and only the Vport looking at the 3d object is rendered




Paul Li
IT Specialist
@The Office
Apps & Publications | Video Demos
Message 3 of 4

Thank you so much!

Message 4 of 4

Glad to help…cheers!!!
