[MarkFitz]

Good day to everyone!

Short and sweet today.

There is a dashed line, light grey in colour, on the page setup, the print margin?

How can I change this, or at least find out what size rectangle it encompasses?

Cheers,

Mark

[imadHabash · Accepted solution]

Hi,

if your asking about the border in Layouts,you can control this elements by making a page setup by PAGESETUP command.and also by OPTIONS command  you can try what you need or not.

[john.vellek · Accepted solution]

Hi Mark - can you post a screen shot of a corner of the layout to show me?  I believe what you are describing is the margins on the page. You can change the margin to 0 if you like.

Please select the Accept as Solution button if my post solves your issue or answers your question.

[MarkFitz]

As requested...

[john.vellek]

Hi Mark, Yes, that is the plot margin. If you go into your page setup and select the properties for your selected printer then you can reduce the margins to 0 if you follow the images in my previous post. If that isn't clear let me know.  I also did a post a while ago that shows how to create a custom PC3 file that shows this operation.

Please select the Accept as Solution button if my post solves your issue or answers your question.

[MarkFitz]

Thanks John and Imad.

On a similar note, it appears that if I draw a horizontal line from the end of the numbered divisions, and a vertical line from the end of the lettered division lines, it intersects nicely at 0,0, great for a standard insertion every time.  Unfortunately, this is not the insertion point of the border.  How do I change that, or s it simpler to just re-block it specifying the new insertion point?

Thanks again!

Mark

[john.vellek]

Hi Mark,

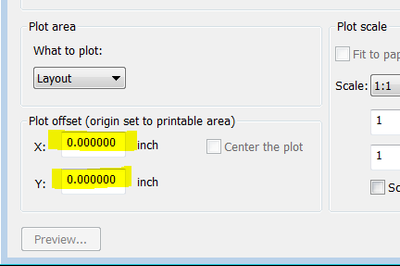

You will notice in your Pagesetup that at the bottom left corner you can adjust the origin point. Sometimes a slight negative or positive value is needed for your border to align exactly.

Please select the Accept as Solution button if my post solves your issue or answers your question.

[imadHabash]

Yes as you said to re-block it specifying the new insertion.it's more preferable to do that.
