Lines disappear after plot

Anonymous

Lines disappear after plot

Anonymous
No aplicable

I tried changing the shadeplot to legacy hidden and this was the only way to fix it but then hatches disappear.



I also checked layer properies and the plot sign was on



The color of the lines is black too



The viewport style is set to 2D Wireframe but I've tried multiple things already and nothing works.



I also tried to plot it both in autocad 2016 and autocad 2018

0 Me gusta
Responder
799 Vistas
1 Respuesta
Respuesta (1)

ara_neresesian
Collaborator
Collaborator

Hi

its depend to the size of plot , page size ,and.....

try to use pdf output not png

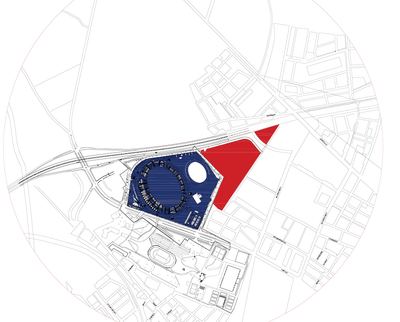

see attached pic and file.


 good luck
