When I export, I need the line segments to be joined. However, when I test the PDF file myself, I notice that the lines are not joined and auto-circles will show around them. People say the PDF is good as the model in the model space. The model is a solid object. This means that when using a view port, all lines should be connected.
View Ports:






See below image of an import of the PDF that I exported.



How do I create a PDF file with all the lines connected?

I do the following to create a PDF:

Export> PDF

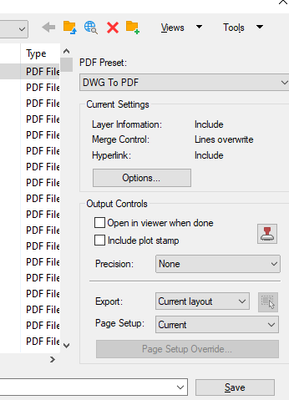

Then these are my settings:





0 Likes
Reply
397 Views
6 Replies
Replies (6)

TheCADnoob
Mentor
Mentor

PDFs are not DWGs, there are accuracy issues with PDFs. That said I'm not sure that this is what your problem is.



Would you be able to share your DWG and PDF?

CADnoob

EESignature

0 Likes

jroehrigU872H
Observer
Observer

Attached below is an example 3D object. Exported using my PDF set-up. Then importing into AutoCAD and got broken lines with circles around it.





0 Likes

pendean
Community Legend
Community Legend

Your "breaks" seem to match up with your model's various points too, probably not a coincidence at all




May I ask: are you just hoping to share a PDF with others instead of sharing a DWG for some sort of copyright protection, and are hoping somehow that a PDF would be good enough for the recipient?

I'm not positive what this round-trip conversion need from a high-precision CAD file to a low-precision PDF is ultimately serving.



jroehrigU872H
Observer
Observer

We create many PDF files of which at times get send to a manufacturer or the art department. They use the PDF file for these purposes. It is ideal to have the lines kept connected.

0 Likes

pendean
Community Legend
Community Legend
@jroehrigU872H Sadly, PDF have limitations like the ones you are experiencing. Not much you can do about it, explore other file formats where possible that convert better/more precisely back to DWG files if sending DWG files is not an option.

TheCADnoob
Mentor
Mentor

Check out this Autodesk knowledge network article. They make adjustments in two places in addition to having much higher DPI settings



https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/How-to...

CADnoob

EESignature
