How to join 3D walls?

[Anonymous]

I have a problem.

Before my 3D house wall it was good, but now its like that.

1-2 pic is how was, 3 pic how look now.

Could you tell me how to join the wall?

Subobject selection filter - No filter

john.vellek has embedded your image(s) for clarity

[Alfred.NESWADBA]

Hi,

>> Could you tell me how to join the wall?

"the wall" ... which one, in your images there are a lot of walls.

Also sorry, you show pictures containing

• Polygon Mesh (in IMG_2412.jpg)
• Region (in IMG_2410.jpg)
• 3D-Solid (in IMG_2413.jpg)

How should we now know what you really have as geometry you are working with...

I would recommend to take a class for 3D construction, a forum is not a replacement for training.

You last posts are not about specific questions, that's more about missing global knowledge about handling 3D geometry with AutoCAD.

Also please look to that information about how to create screenshots in Windows >>>click<<<

- alfred -

[john.vellek]

HI @Anonymous,

You do have a mixture of geometry types in your model. Is it possible to attach it or perhaps just the walls so I can take a look and show you some steps to get this more uniform and easier with which to work?

Please select the Accept as Solution button if my post solves your issue or answers your question.

[Anonymous]

Perfect. So, how you can show me?

[Anonymous]

Hi,
must have missed something, how do I join two walls at 90° without having to zoom in and ajust them. Is there a snap to the end center point? if you get my meaning?
thanks

[john.vellek]

HI @Anonymous,

You will need to share your file with me so i can see all the types of construction you have already created.  When "joining" walls in AutoCAD it does not "self-join" or "heal" like walls behave in Revit or SketchUp.  It is a much more "manual" process to get them connected.

Please select the Accept as Solution button if my post solves your issue or answers your question.

[Anonymous]

did you notice the angle of the wall change when its connect how to prevent that  ShowBoxLucky Patcher Kodi

[Anonymous]

Hi,

Do you talk about that?

[Michiel.Valcke]

Hello,

It seems that there is something unclear.

We cannot give you a definite answer for your problem without having access to your actual .DWG file.

If you can, please attach your .dwg file to your message.

If you cannot do this (for whatever reason) then you might want to try the following: _UNION (choose 2 solids)

[Anonymous]

Hi,

I added my Autocad file.

Thanks

[Michiel.Valcke · Accepted solution]

Hi,

I took a look at your .dwg

You have used a lot of different types of objects. There are Solids, Meshes, Regions, Surfaces, and 3Dpolylines in your drawing. All representing 3D objects.

For your original question I could not union the different walls because they are regions placed together.
I took one of those regions and turned it into a 3DSOLID by exploding it and extruding the contour.
You would still need to subtract the windows and the door opening, but it is a start.

In general it is better to start drawing directly from 3D objects instead of trying to put 2D objects together and then later sculpting them into 3D objects.



In attachment you can find your original .dwg with the basic 3Dsolid I made from the top region.

To create the 'holes' for the windows and doors you can just draw closed 2Dpolylines and use _presspull or _extrude to _subtract the shapes from the solid.

I hope this helps you somewhat.

[Anonymous · Accepted solution]

Hi,

I opened my DWG.

So, that you mean exactly about ''to start drawing directly from 3D objects''? Do you mean 3D templates?

Also, how I should to transfer my all furniture in new basic 3Dsolid that you made?

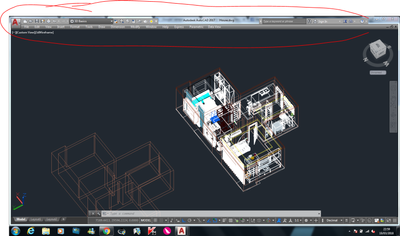

P.S My house template toolbar to changed. Now it is look like that (I added image). Do you know how I come back in the same place?

Thanks for help 🙂

john.vellek has embedded your image(s) for clarity

[john.vellek · Accepted solution]

Hi @dovilemackeviciute857,

From your image that you provided, it appears that you have merely collapsed the ribbon.  I made a quick video to show how you might restore it.

[john.vellek · Accepted solution]

Hi @dovilemackeviciute857,

I started from scratch on this. I made a video of my process.

You will see first that using -DWGUNITS, I verify that my drawing units are in inches as it appears you are from the US. Then I use Units to verify that I am in Architectural units and that I have set my Angle Precision to be  pretty high.  I did this as I noted that many of your walls are not actually perpendicular but off a  very slight amount.  I am unsure what units you are working in as many of the rooms did not look to be a realistic size.  I believe that you have another thread about furniture models and how to get the scale right for insertion into your model. It is imperative that you work with real world dimensions and draw at 1:1.  Then, if the furniture is drawn in MM's you can apply a scale factor.

Once I have the 2D walls in place, I then use Presspull to bring them up to a specified height. I show in my video how you can make the Presspull easier by only working one one part of the 2D plan at a time. I also show that once you have a height of a solid that it can be adjusted later.  Lastly, I show how you can use UNION to join solids.

Please select the Accept as Solution button if my post solves your issue or answers your question.

[john.vellek · Accepted solution]

HI @Anonymous,

I am checking back to see if my post or others helped you with your problem. Please mark a post or posts as accepted solutions if they resolved the issue or give me a bit more detail on this issue so we can continue to work towards getting this solved.

Please hit the Accept as Solution button if a post or posts solves your issue or answers your question.
