Fillet Command using ellipse radius rather than circle radius?

[WireTechLLC]

Good Morning,

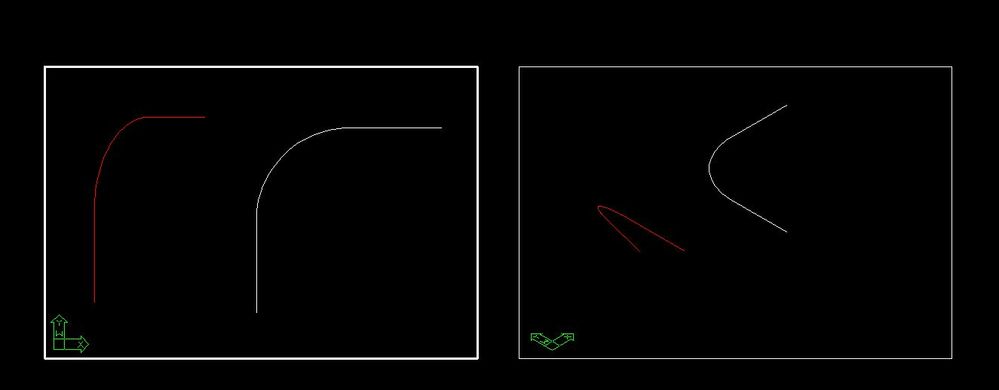

I'm using AutoCAD LT 2018 and For some reason when I use my fillet command it uses the radius of an ellipse, rather than the radius of a circle..  I'm not sure what I did to change this..

I've searched through the forums and AutoCAD help and can't find a solution.  Does anyone have any idea on how to change it back?

[Kent1Cooper]

I suspect your view direction is not from straight above.  The grip in the middle of the curve is characteristic of an Arc, not an Ellipse.  Type PLAN and accept <Current> as the default.  Or, you may need to set the UCS to match the Arc first [UCS, OBject option].  It could be caused by one of the Lines not lying flat in the current drawing plane -- pick each and look at its Properties for a non-zero Delta Z value.

[WireTechLLC]

Kent,

the PLAN command was already set for <current> so re-selecting that didn't change anything .  I tried changing the view to TOP up in the views tab, and that didn't change anything either.

I drew some new lines on a different layer, and for some reason those fillet just fine.. so maybe it's an issue with the other layers?

[WireTechLLC]

Kent,

I looked at the Delta Z for my lines and it looks like they're set for about 5.5  How can i change this so I only draw in X and Y?

Thanks!

[imadHabash]

HI,

i agree with @Kent1Cooper ... please if it's not fixed attache here your issue as a CAD dwg for testing.

[Kent1Cooper · Accepted solution]

---

@WireTechLLC wrote:

....

I looked at the Delta Z for my lines and it looks like they're set for about 5.5  How can i change this so I only draw in X and Y?

....

---

If you didn't mean to be drawing out of the XY plane, for things already drawn, you can use FLATTEN to force them into it.  Or if it's all a matter of Lines, you can use QSELECT to grab all Lines in the drawing, and in the Properties box, set the Z coordinate of all their start and end points to zero, all at once.  For things not yet drawn, you can set the OSNAPZ System Variable [in new-enough versions] so that if something you Object-Snap to when drawing happens to be at some non-zero elevation, it will ignore its Z coordinate and use the zero-elevation version of that location.  That won't prevent certain other ways that you could get things off the plane, but it should prevent most accidental ones.

[Patchy]

It had been rotated in 3d

[WireTechLLC]

Kent,

It looks like that was the issue.

Thanks for all of your help. I really appreciate it 🙂
