Filet Edge command will not accept on 3d object

Anonymous
Not applicable

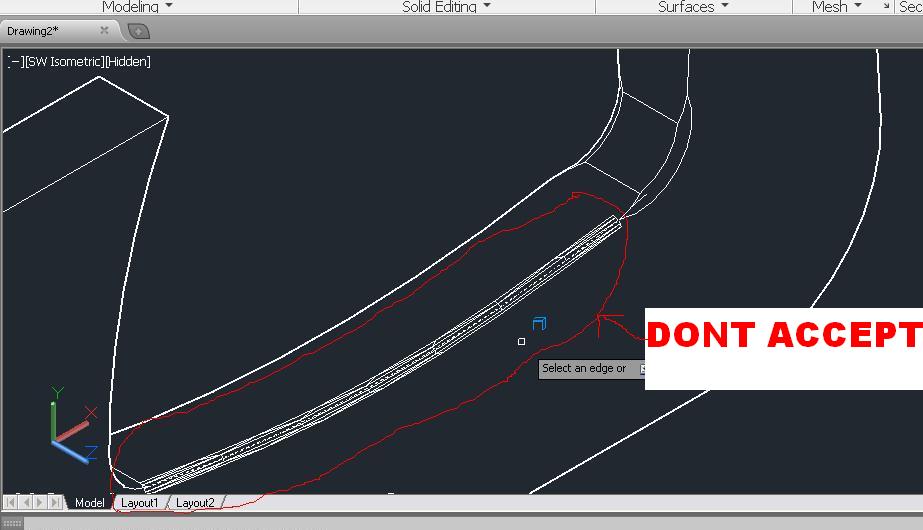

I using AutoCAD 2014 and I have a problem with Edge Fillet command. I need to round the edge of on 3D objects and Fillet Edge command works only on some edges and some will not. In the pictures you can see my example. Could that be how to solve this?









0 Likes
Accepted solutions (1)
1,277 Views
3 Replies
Replies (3)
Message 2 of 4

JDMather
Consultant
Consultant

Can you attach the *.dwg file here?

Did you save the construction geometry (delobj=0)?



Do you have tangent continuous curves (the construction geometry will answer that question).


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 3 of 4

nestly2
Mentor
Mentor
Accepted solution

Due to the existing fillet, there is no way to blend the selected edge.  In the instance, you'd have to use the Chain option within the FILLET (or FILLETEDGE) command to specify additional edges to blend.  More --> LINK

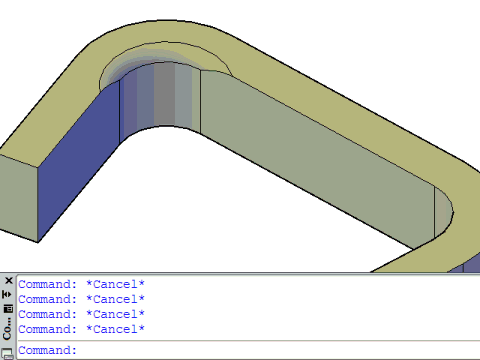

FILLET - Chain option.gif



0 Likes
Message 4 of 4

Anonymous
Not applicable

I try to attach file .dwg but not, eject error: the contents of the attachment doesn't match its file type.

Dropbox link: https://www.dropbox.com/s/hrvw3rpu6dufzdi/3D.dwg?dl=0

May delobj option is set to 0. I'm afraid I do not understand the second question, I am still a beginner.



nestly2, I try the Chain option and I made all filet edge.

I thank you both for your help!
