Dimension numbers are reversed

3li_abufahad
Explorer
Explorer

How can the numbers in the dimensions be correct and readable in a healthy manner?
Example: When I type (10) it appears as inverted (01). What is the solution?

0 Me gusta
Responder
1.529 Vistas
16 Respuestas
Respuestas (16)

pendean
Community Legend
Community Legend
@3li_abufahad Are you looking at your content from BELOW, not above?
Or did you mirror your shape and it's dimensions but forgot to correctly set MIRRTEXT variable first so as not to do that?

If you are unsure, you'll want to share your DWG file the image came from here for someone to examine it more closely for you.
0 Me gusta

3li_abufahad
Explorer
Explorer

I was working normally on the program and there was no problem, but suddenly this happened
Dimension numbers appear reversed. When I type, for example, the number 207, the number changes to 702

0 Me gusta

pendean
Community Legend
Community Legend

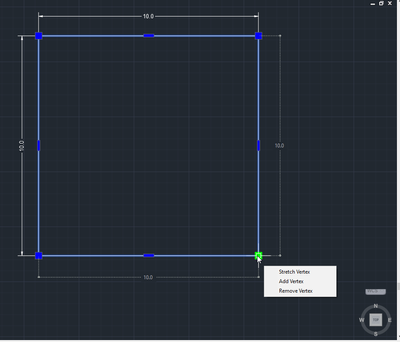

This is what your posted file looks like over here @3li_abufahad Not sure I see your issue, or is this meant to be 0.01?




0 Me gusta

Patchy
Mentor
Mentor

Use PLAN command

or UCS, use world, then try to dimension again.

0 Me gusta

3li_abufahad
Explorer
Explorer
I mean, when I have a square with a dimension of 10 cm by 10 cm, and I set the dimensions for it, the dimensions are reversed, so it says 01 cm by 01 CM, a second example is if the dimensions were 95 by 95, the program writes the dimensions 59 by 59
0 Me gusta

3li_abufahad
Explorer
Explorer

This is what happens to me

0 Me gusta

Patchy
Mentor
Mentor

Show us the DIMSCALE

Is it 1 ????


0 Me gusta

3li_abufahad
Explorer
Explorer

Screenshot 2024-06-28 200609.png

0 Me gusta

Patchy
Mentor
Mentor
Type in: DIMLFAC and see if it is 1
0 Me gusta

3li_abufahad
Explorer
Explorer

yes is 1

0 Me gusta

pendean
Community Legend
Community Legend

@3li_abufahad wrote:
I mean, when I have a square with a dimension of 10 cm by 10 cm, and I set the dimensions for it, the dimensions are reversed, so it says 01 cm by 01 CM, a second example is if the dimensions were 95 by 95, the program writes the dimensions 59 by 59

Thank you for the video: unfortunately the DWG file and it's dimensions that you shared here does not do that.

PLUS the DWG file you shared has it's DWGUNITS set to INCHES, not cm..

And you also have UNITS are set to METERS (aka 10x CM, so 10cm is 01m, isn't that correct).



You lost track of the units settings in your file. Nothing more: start reading all about that here

https://www.autodesk.com/support/technical/article/caas/sfdcarticles/sfdcarticles/Convert-imperial-u...

Then in 2025's HELP starting

https://help.autodesk.com/view/ACD/2025/ENU/?guid=GUID-A54B17F4-2EB5-4C62-A7C5-E3B2265FAB68



0 Me gusta

bassel200078
Community Visitor
Community Visitor

I have the same problem but in every dwg file how can fix it

0 Me gusta

basselalzawy
Observer
Observer
Hi i have the same problem but in every dwg file even if i make a new one still the same number is reversed 5000-->0005 can you help
0 Me gusta

Kent1Cooper
Consultant
Consultant

A Hebrew font, or some other for a language that reads from right to left?

Kent Cooper, AIA
0 Me gusta

basselalzawy
Observer
Observer
I deleted all the app and re downloaded it now number are good thanks
0 Me gusta

pendean
