Depth observed in 2D DWG file while testing with Hoops Communicator

[Anonymous]

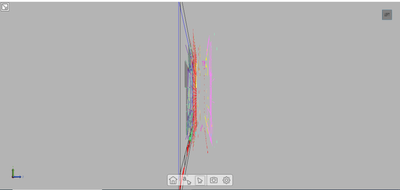

We are trying to use 2D DWG files in Hoops Communicator (web based toolkit). We convert the DWG file to Hoops communicator native format (stream cache(sc/scz)). After conversion, we are observing a depth for drawing. All the entities are placed not placed in single place. The group of entities are placed in different plane. We are trying to use this 2d DWG file in federation with 3D model. In this context, we have access to navigation/orientation of model, so we can observe that all entities of drawing are not placed in single plane.

We are already communicating with Hoops Support for this query. We would like to know AutoCAD experts, whether this is result of any metadata/properties in DWG file. Is there something as part of DWG file that may result in placing entities in different plane?

Please find attachment for DWG (3D +2D) file.

Thanks.

[cheryl.buck]

Hi @Anonymous,

I do not see any hidden objects in the drawing on the AutoCAD side, no objects off the primary plane, or any metadata/3rd party.

 I would guess it is a mistranslation during the conversion process.
