Hello,
I want to ask how to automatically or the easiest way to generated a
crossing line segment as the picture below?
Currently i still create the circle at the intersection, then trim it manually.
I hope i can find any settings, LISP or the simplest way to create it.
Thanks Before!
Another way to do it is inserting a block at the intersection. This block contains an arc and 2 wipeouts which will hide the line to be "breaked". You can also give an Alignment Parameter to the block so it becomes a dynamic block which can rotate automatically with the line when you drag it from the Block Insert Palette.
Here attached an example block, you can change it to suit.

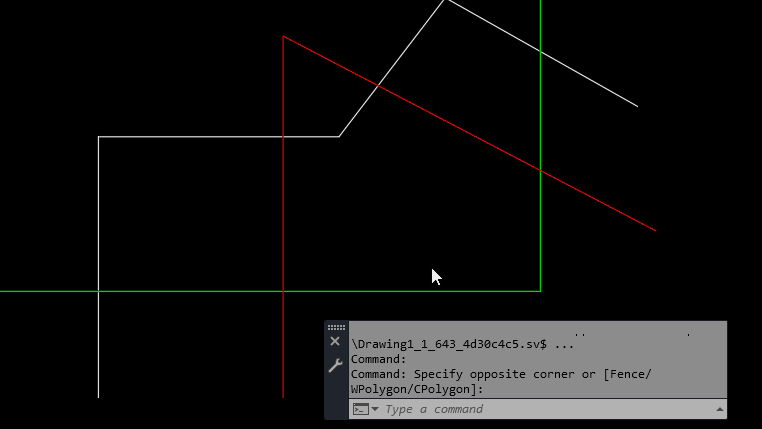

Image below is a similar process but not as good as above dynamic block approach.
Another benefits of using block is you can make it an annotative block and it will visually scale up or down automatically in different scaled viewports.
