blocked image not clipping correctly in autocad

binuntachari
Contributor
Contributor
‎08-20-2023 11:58 PM

i have a blocked imge for pattern. i try to clip that, it is not cliping correctly. i attached dwg below. i show the border i want. please help me about this issue.

can any one clip that correctly? & can u please tell me how to solve the issue


before cliping👆


after cliping

xref.main exhibition terrace pav A & B - Standard.zip
0 Likes
Like
Report
452 Views
3 Replies
Tags
Replies (3)
Message 2 of 4

Valentin_CAD
Mentor
Mentor
‎08-21-2023 06:15 AM

@binuntachari ,



Consider separating the image and pattern into two different drawings.

You will need to use the XCLIP command and IMAGECLIP as needed.

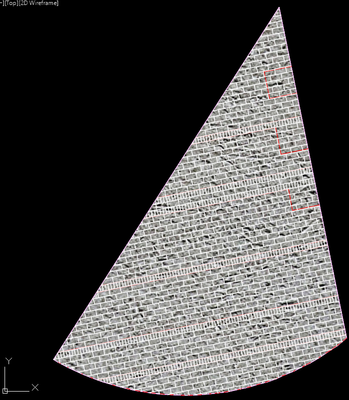

See quick sample Zip file.








Select the "Mark as Solution" if my post solves your issue or answers your question.

Seleccione "Marcar como solución" si mi publicación resuelve o responde a su pregunta.


Emilio Valentin

Downloads.zip
Report
Message 3 of 4

binuntachari
Contributor
Contributor
‎08-21-2023 07:00 AM

like that its okay. but the background image stretched too much

0 Likes
Like
Report
Message 4 of 4

Valentin_CAD
Mentor
Mentor
‎08-21-2023 07:05 AM

@binuntachari ,



You will need copy the image and clip as needed.

The information provided should guide you to complete your goal.



Select the "Mark as Solution" if my post solves your issue or answers your question.

Seleccione "Marcar como solución" si mi publicación resuelve o responde a su pregunta.


Emilio Valentin
