WD_3UNIT command With multi-LINK not work as as expected [AutoCAD Electrical]

lihouxin065
Advocate
Advocate

Add a  command: "WD_3UNIT VVL1_5port_2pos_MNV27" to Icon menu

with  symbol files :"VVL1_5port_2pos_MNV27.dwg" and"VVL2_5port_2pos_MNV27.dwg"

graph generated on a sheet after a symbol is inserted,some link line  did not generatedgraph generated on a sheet after a symbol is inserted,some link line did not generatedThe expected graphThe expected graph





@lihouxin065

The topic title has been edited to improve findability by @alina.balkanskaia. Original:  WD_3UNIT command With multi-LINK not work as as expected

0 Likes
Accepted solutions (1)
996 Views
11 Replies
Replies (11)
Message 2 of 12

lihouxin065
Advocate
Advocate
Is there any way to automatically complete the missing dsah lines?
0 Likes
Message 3 of 12

alina.balkanskaia
Alumni
Alumni

Hello, @lihouxin065! Thanks a lot for posting your question to the forums!  For the community to help you best it would be very valuable to have some more details about version of the program you use. Looking forward to hear back from you with more information so we as community can help you!

 



Alina Balkanskaia
Community Manager
0 Likes
Message 4 of 12

lihouxin065
Advocate
Advocate

AutoCAD Electrical 2023

0 Likes
Message 5 of 12

rhesusminus
Mentor
Mentor

What are you trying to do here?
Your symbol has X#LINK and X#TERM## attributes in the same place.

Link lines are not pipes/conductors...


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 6 of 12

lihouxin065
Advocate
Advocate

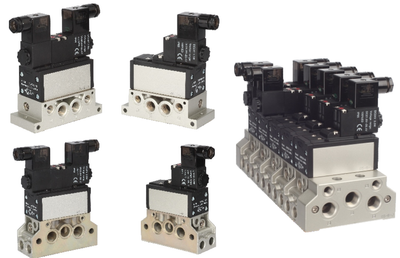

Thank you for your attention, I want to create the symbol of the valve mainfold, which consists of multiple solenoid valves assembled together(the dash line in the photos), which share a pressure input or exhaust port。




0 Likes
Message 7 of 12

lihouxin065
Advocate
Advocate

When using the WD_3UNIT command to insert symbols, you want to generate all six link lines instead of just 2 of them。




0 Likes
Message 8 of 12

rhesusminus
Mentor
Mentor

In that case you should not be using link lines at all.

You should create some "wire types" for pressure and exhaust and draw them as wires. Then, you should insert the valve blocks on them. I'll make a quick video.


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 9 of 12

rhesusminus
Mentor
Mentor
Accepted solution

You cannot get all 3 to be connected with a "Link line" (the dotted line). That is NOT a pipe/hose.



You should draw the "wires" lines first, and then insert the symbol on top like this: (Sorry for slow computer. I'm running a CPU intensive task in the background)


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 10 of 12

rhesusminus
Mentor
Mentor

Ahh.. I see now that OBS didn't capture all the dialogs/windows... But you should get the general idea.


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 11 of 12

lihouxin065
Advocate
Advocate
Thanks for your quick response,I get it.
0 Likes
Message 12 of 12

lihouxin065
Advocate
Advocate

Got some inspiration from this post:Custom Schematic Symbols with multiple link lines

and finally solved the problem.
