Terminal block with jumpers

[galashkina]

The terminals X1 and X2 have four terminals.

Terminal Properties X1: 1

Terminal Properties X2: 1

I used the Pick to connect the terminals to the multi-level terminal block X1

I used the Add/Modifi to connect the terminals to the multi-level terminal block X2

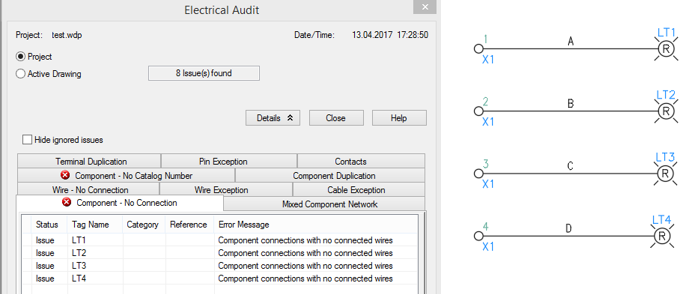

Wire numbering error X2



What error?

[galashkina]

It is not required to check all 500 terminals.
Only terminals with jumpers

[rhesusminus]

Yup. But I think that maybe Electrical Audit should check this, and give an"issue"...

[galashkina]

---

@rhesusminus wrote:
Yup. But I think that maybe Electrical Audit should check this, and give an"issue"...

---

[rhesusminus]

Exactly. For "wire exceptions" it should say that wire numbers B, C and D should be A.
