How do I label individual Wire segments?

[afelsheimQGEXM]

I am designing a wire harness and I want to use the wire label tool to label each wire segment, but it labels the entire circuit/all the wire branches that are connected as the same wire number.

In the attached screen capture, I am using a terminal with wire change, but I need to represent a wire splice of 4 wire segments, each with a different wire segment ID to populate a wire cut list.

Suggestions on how to use the wire number to do this?

[james.mcmillanNYR6A]

Is the ju20 an acade square terminal?

Put the wires on the left as per the attached

[afelsheimQGEXM]

That would work for this particular example, but since I am trying to represent a splice, or more specifically and ultrasonic weld, I need to show which wires are arranged axially. Typically, I use a Splice symbol as shown in the attached screencap, and this illustrated the issue better than the terminal.

Thanks!

[james.mcmillanNYR6A]

I'm not so familiar with use of the splice, I think whenever you join wires like this the network will take the same wire number. Could you define it somehow with cable markers/different cores? I think it's either that or provide some independent connection for your wire to symbol

I couldn't be sure but expect any acade report on the splice would not accept the 3 connections on one side either.

One of the experts might set me right on all the above

[rhesusminus · Accepted solution]

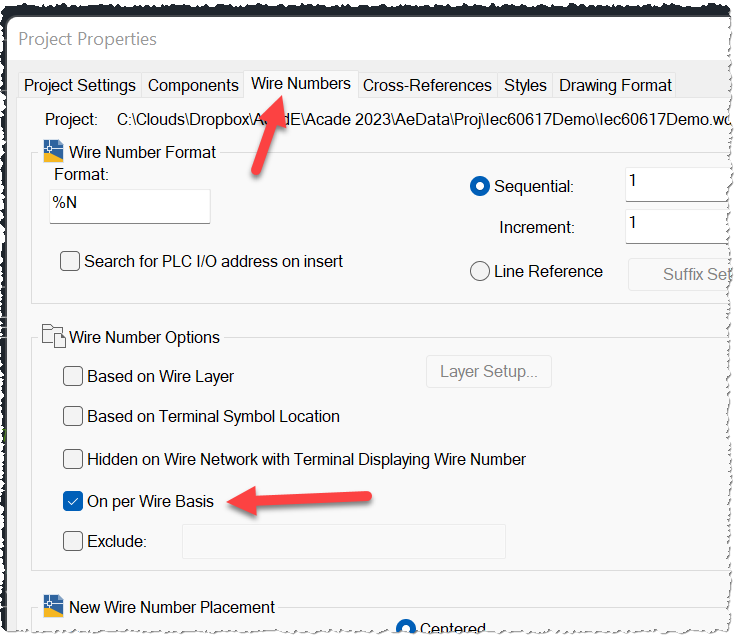

Have you tried checking the "On per wire basis" checkbox in the project settings, and rerunning the wire numbering?

[jseefdrumr]

Trond's suggestion is really the only way to make this work without a custom solution.

If you are unable to number the wires on a per-wire basis, you may want to consider drawing yourself a custom wire change terminal, and just make it really really small - small enough so that the printed line's weight will obscure it.

I did that for a specific project a long time ago, because it was an as-built legacy project and I couldn't adjust how the wires were numbered. It worked well for that situation.

[afelsheimQGEXM]

This is exactly what I'm looking for!

Thanks so much!
