Dimension font size in toolbars

Anonymous

Dimension font size in toolbars

Anonymous
No aplicable

Just installed Autocad Architecture 2017 on a new Dell laptop.

The palettes appear with huge text size as well as the command line.

I need to resize them so they are readable.

How can I do that?

Already tried to lower the resolution but didn't work.

Also tried to lower the text size in Windows to 100% since it was 250% as recommended for the recommended resolution of 3200 x 1800.

Any suggestions on how to resize the text in the palettes (Properties and Tool) and command line??

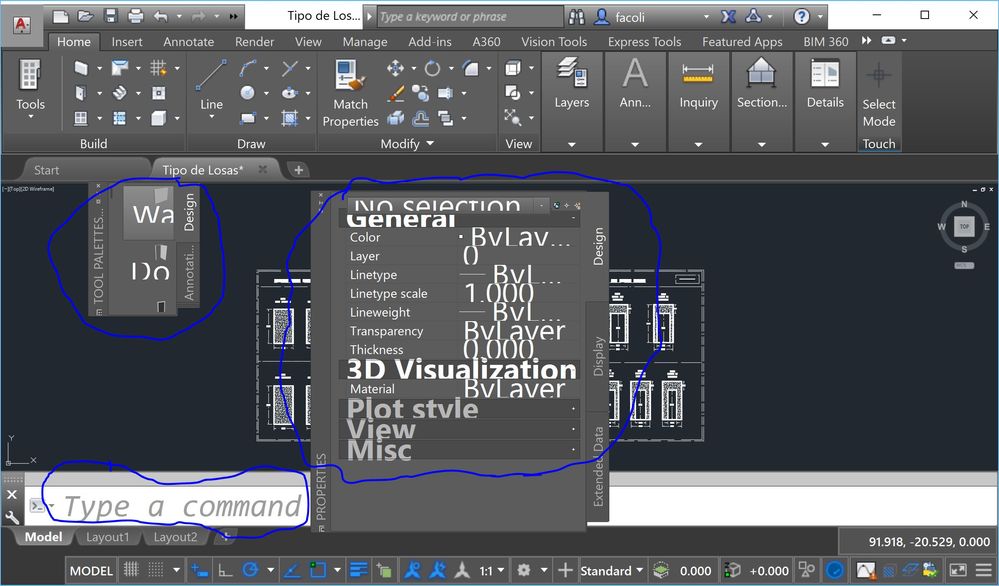

Attaching screen shot of the problem.


0 Me gusta
Responder
Soluciones aceptadas (1)
675 Vistas
3 Respuestas
Respuestas (3)

carl.coghill
Advocate
Advocate

Have you tried this;



    1. Click Application button Options.
    2. In the Options dialog box, Display tab, under Window Elements, click Fonts.
    3. In the Command Line Window Font dialog box, select the a Font, Font Style, and Size.

      An example of the current choices appears under Sample Command Line Font.

    4. Click Apply & Close to save the changes.
Note: This setting does not affect the text in your drawings.



Source:

http://help.autodesk.com/view/ACDLT/2016/ENU/?guid=GUID-CC2EE334-2D51-43EB-AC8A-FD4EAE2525CA

Carl Coghill
Senior Designer
AutoCAD 2018
Windows 7 Professional 64bit
LinkedIn
0 Me gusta

carl.coghill
Advocate
Advocate
Solución aceptada

If that doesn't work, it would appear that an update needs to be installed;



https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Odd-gr...



Hope this helps

Carl Coghill
Senior Designer
AutoCAD 2018
Windows 7 Professional 64bit
LinkedIn

Anonymous
No aplicable

Thanks Carl for the info.

In fact disabling DPI scaling did the job!

That plus reducing the resolution to 2048 x 1152 and the text size in Window to 150%.



Still it's not scaled perfectly, but at least I can see the text in the palettes and work.

Hopefully there will be an update soon.

0 Me gusta
