Show beams below the Grating

[oswaldodcb]

Hello!

I have an issue, I need to show a plan view with the grating and the beams at the same time, so I don't know what the presentation mode should be for it to look the way I want it to look.

I used the "3 - Plan View - Line" Drawing Style, I can see the beams like I want, but I cant see the grating, I edited the grating to convert like MP-Grating, and I can see it, but the beams are missing now 😶

What should I do to show both elements in the plan view?

Thanks!

[Lewk_PSB]

In the Drawing Style Manager look for the drawing style you're using and go into Objects Presentation. Set the Geometric Restriction to ALL for the following: "Mp - Beam", "Mp - Grating", "Grating", and "Beam". Also set the Presentation to your preference for each and make sure the Depth Position is set to Any.

[Lewk_PSB]

As I just stated in a very recent post, make sure you're using a User process and that your Drawing Process and Drawing Style palettes are set to User (toggle the flag icon at the top).

[oswaldodcb]

Thanks for your reply, I will try that and let you know.

[oswaldodcb]

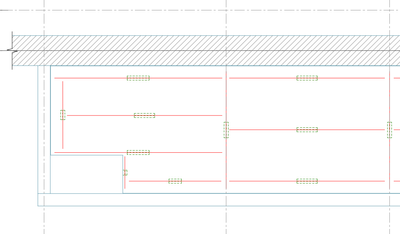

Hello! @Lewk_PSB Done! Thanks for that, I could see the Beams under the Grating, however when I do this the beams labels are hidden, do you know how to show them again? I have tried moving the order of the Model objects and I can't get them to show.

Could you help me? thanks

[Jonathan3891]

Im curious as to why your showing the full grating extents and steel in the same plan view.

In my experience typically the steel plan only shows grating hatch in a few places as well as the grating span symbol and handrail outline. Then there is a grating plan that shows cuts, penetrations, etc.

Again this is what I'm use to seeing in the US. I'm sure it's done differently in other places.
